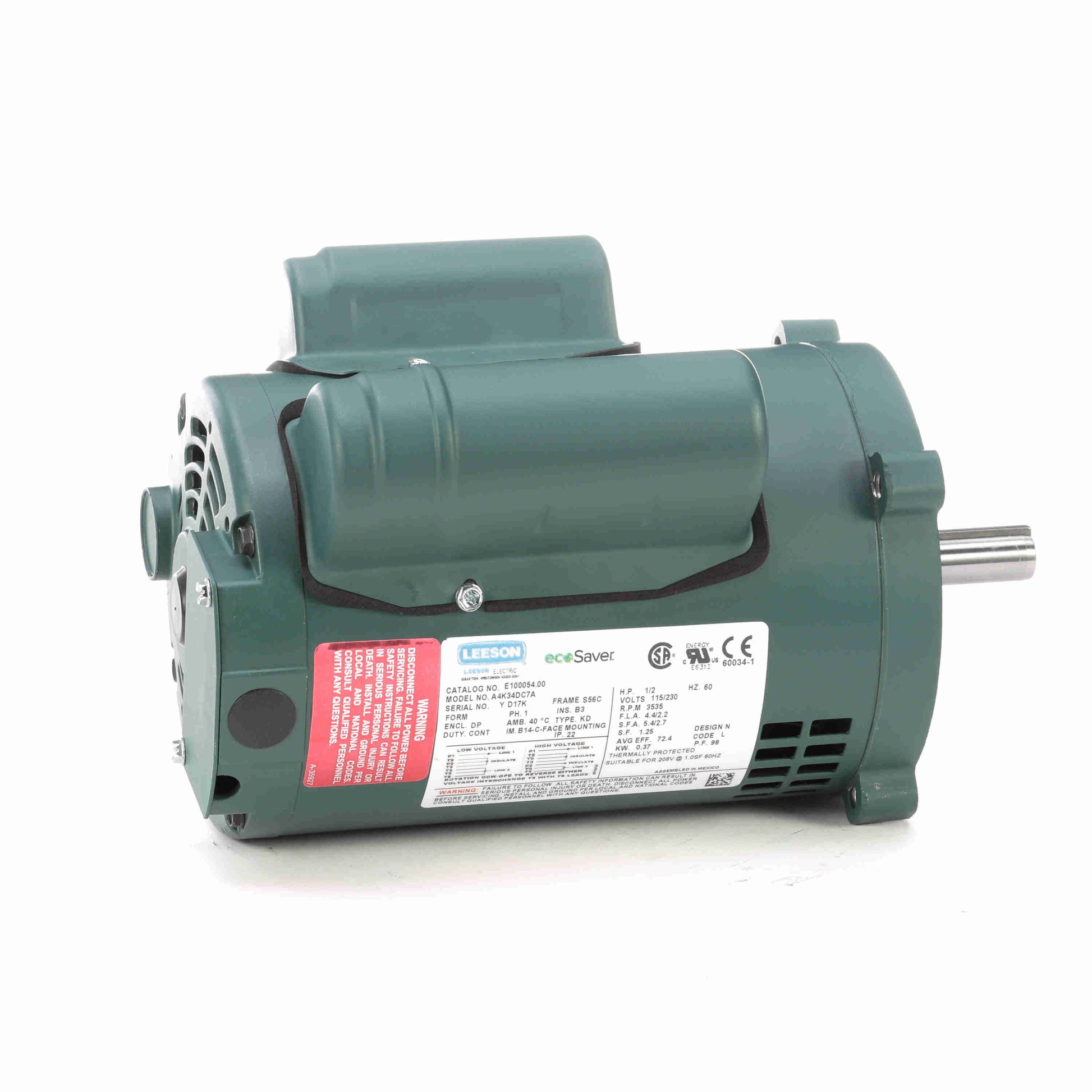

Leeson Electric E100054.00, 1/2 Hp, 3600 Rpm, S56C FR, 115/230 Vac, 1 PH, DP, C-Face Less Base, General Purpose.

E100054.00, 1/2 Hp, 3600 Rpm, S56C FR, 115/230 Vac, 1 PH, DP, C-Face Less Base, General Purpose.

Engineering Data

Output HP:0.50 Hp
Output KW:0.37 kW
Frequency:60 Hz
Voltage:115/230 V
Current:4.4/2.2 A
Speed:3535 rpm
Service Factor:1.25
Phase:1
Efficiency:72.4 %
Power Factor:98
Duty:Continuous
Insulation Class:B
Design Code:N
KVA Code:L
Frame:S56C
Enclosure:Drip Proof
Thermal Protection:Automatic
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:Y
IP Code:22
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:2
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:10.99 in
Frame Length:7.00 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 ONLY
