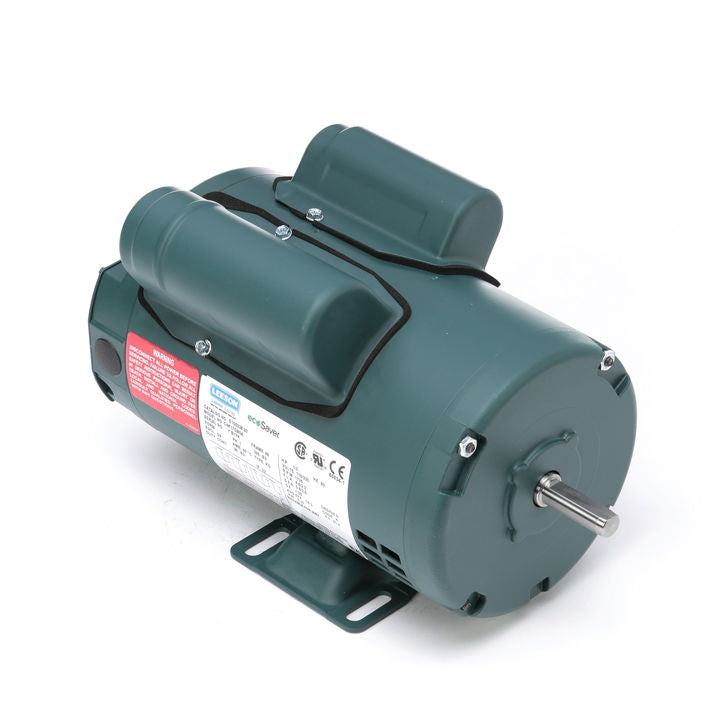

Leeson Electric E100588.00, 1/3 Hp, 1800 Rpm, S56 FR, 115/230 Vac, DP, 1 PH, Rigid Base, General Purpose.

Leeson Electric E100588.00, 1/3 Hp, 1800 Rpm, S56 FR, 115/230 Vac, DP, 1 PH, Rigid Base, General Purpose.

$595.00
$595.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$595.00 $321.30
Sale

E100588.00, 1/3 Hp, 1800 Rpm, S56 FR, 115/230 Vac, DP, 1 PH, Rigid Base, General Purpose.

Engineering Data

Output HP:0.33 Hp
Output KW:0.25 kW
Frequency:60 Hz
Voltage:115/230 V
Current:3.8/1.9 A
Speed:1755 rpm
Service Factor:1.35
Phase:1
Efficiency:72.4 %
Power Factor:79
Duty:Continuous
Insulation Class:B
Design Code:N
KVA Code:L
Frame:S56
Enclosure:Drip Proof
Thermal Protection:Manual
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:Y
IP Code:12
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:10.99 in
Frame Length:7.00 in
Shaft Diameter:0.625 in
