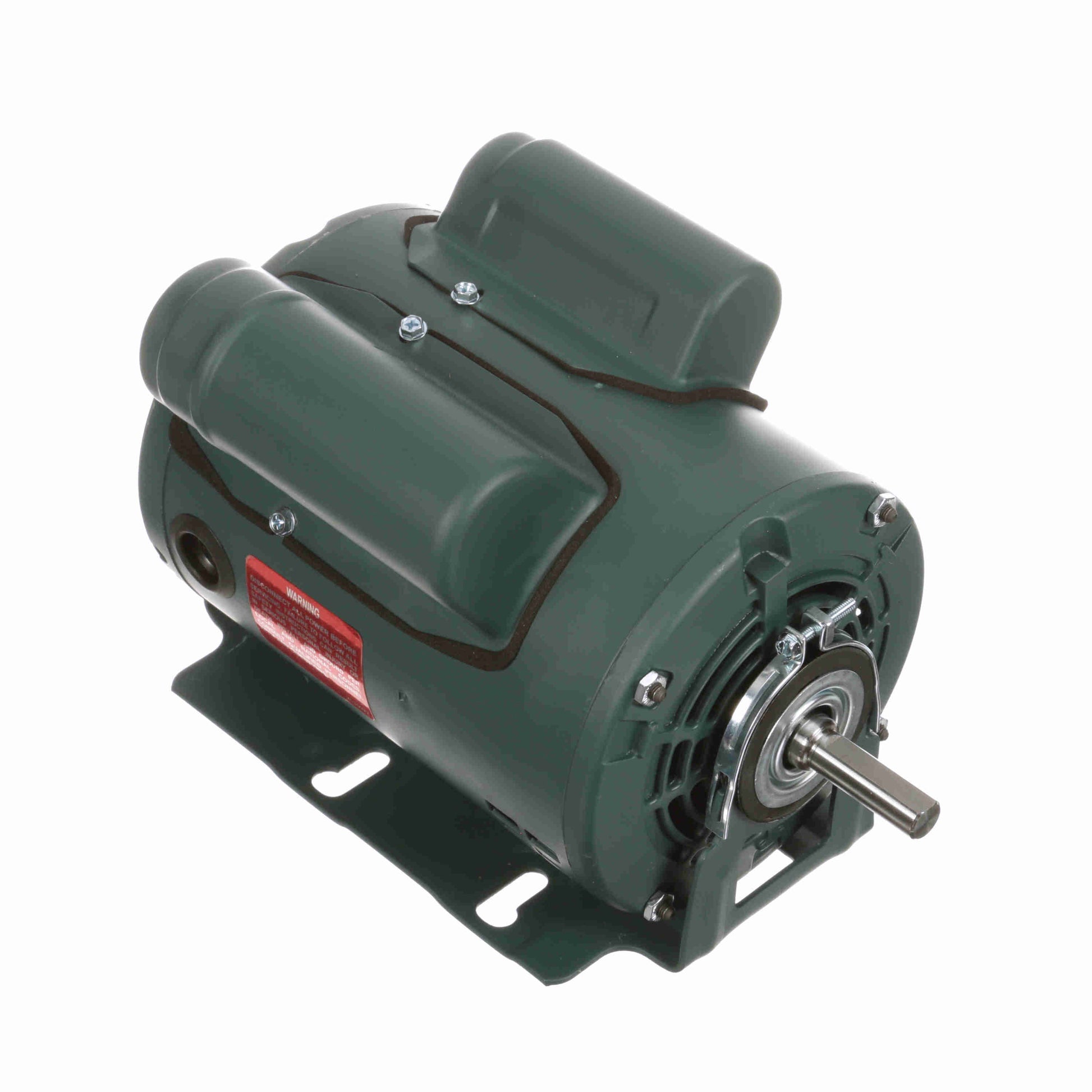

Leeson Electric E101423.00, 1/4 HP, 1800 RPM, 48 FR, 115/208-230 Vac, 1 PH, DP, Rigid Base, General Purpose.

E101423.00, 1/4 HP, 1800 RPM, 48 FR, 115/208-230 Vac, 1 PH, DP, Rigid Base, General Purpose.

Engineering Data

Output HP:0.25 Hp
Output KW:0.19 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:2.4/1.3-1.2 A
Speed:1725 rpm
Service Factor:1.35
Phase:1
Efficiency:68.5 %
Power Factor:92.7
Duty:Continuous
Insulation Class:F
Design Code:No Design Code
KVA Code:M
Frame:48
Enclosure:Drip Proof
Thermal Protection:Manual
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:Y
IP Code:22
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 48
Overall Length:10.37 in
Frame Length:6.75 in
Shaft Diameter:0.500 in
Shaft Extension:1.5 in
Assembly/Box Mounting:F1 Only
