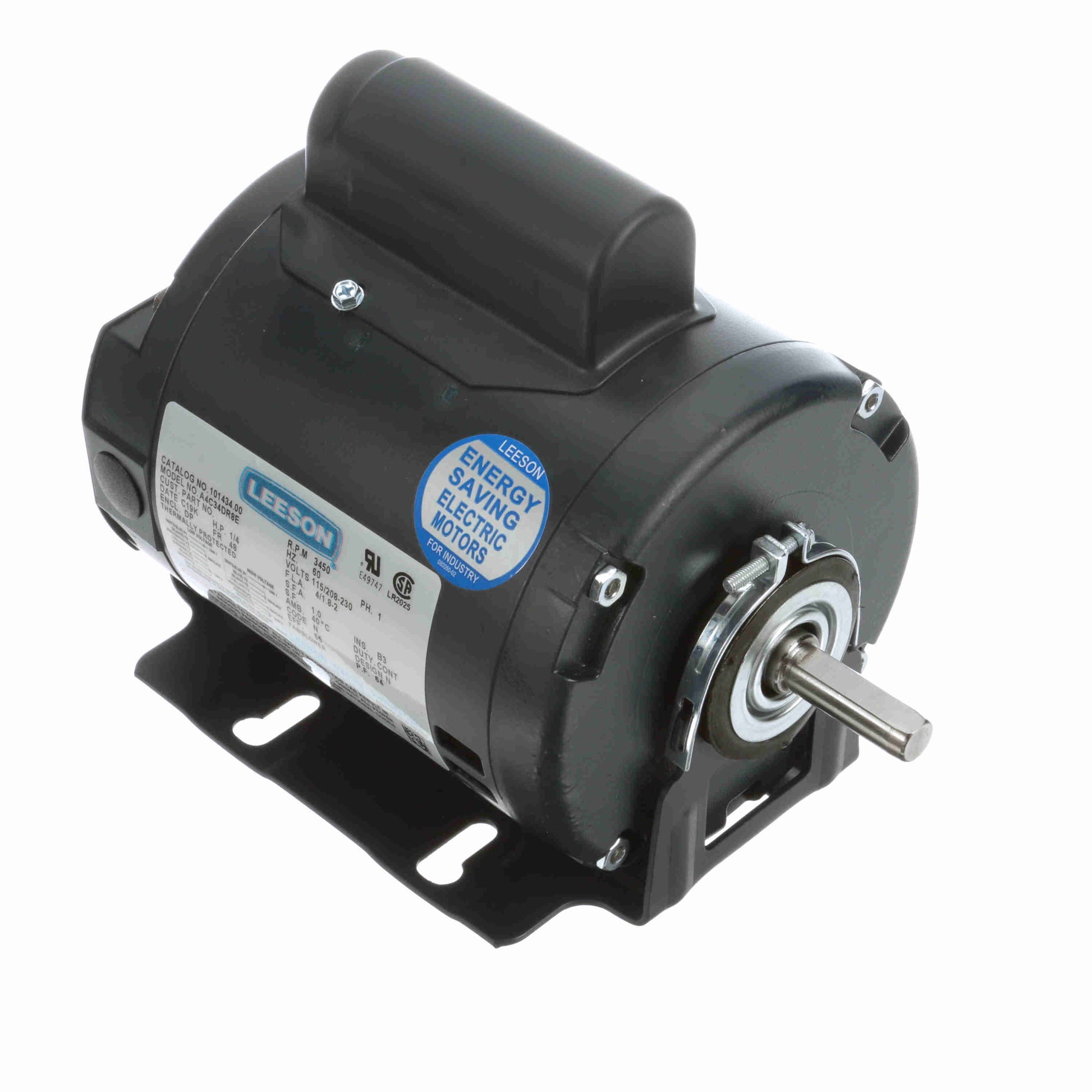

Leeeson Electric E101434.00, 1/4 HP, 3500 RPM, 48 FR, 115/230 Vac, 1 PH, DP, Resilient Base, General Purpose Motor.

E101434.00, 1/4 HP, 3500 RPM, 48 FR, 115/230 Vac, 1 PH, DP, Resilient Base, General Purpose Motor.

Engineering Data

Output HP:0.25 Hp
Output KW:0.19 kW
Frequency:60 Hz
Voltage:115/230 V
Current:2.5/1.2 A
Speed:3450 rpm
Service Factor:1
Phase:1
Efficiency:65.8 %
Power Factor:99
Duty:Continuous
Insulation Class:B
Design Code:No Design Code
KVA Code:F
Frame:48
Enclosure:Drip Proof
Thermal Protection:Automatic
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:N
IP Code:22
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:2
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Resilient Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 48
Overall Length:10.39 in
Frame Length:6.00 in
Shaft Diameter:0.500 in
Shaft Extension:1.5 in
Assembly/Box Mounting:F1 Only
