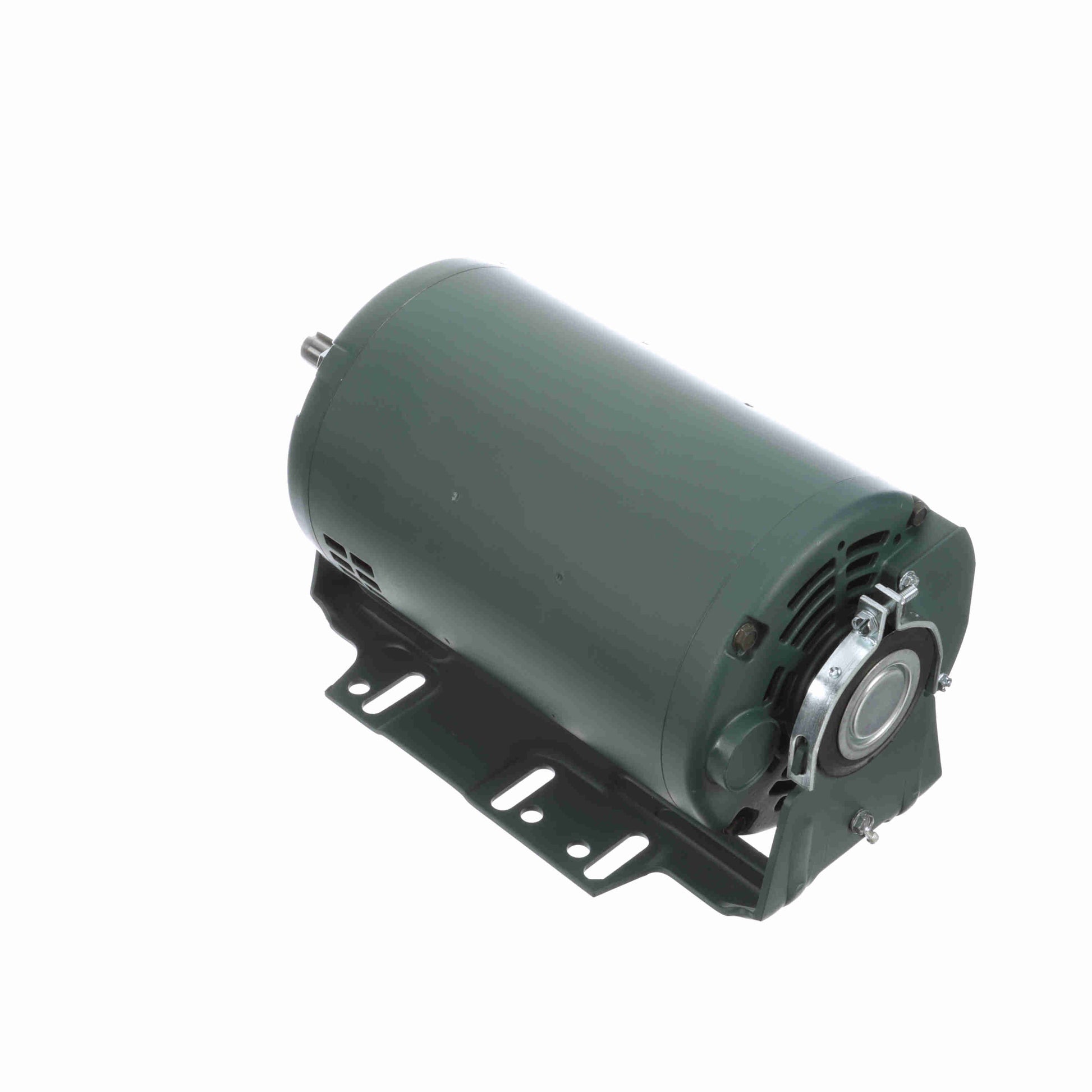

Leeson Electric E101520.00, 1/3 HP, 1800 RPM, S56 FR, DP, 230/460 Vac, 3 PH, Rigid Base, General Purpose.

E101520.00, 1/3 HP, 1800 RPM, S56 FR, DP, 230/460 Vac, 3 PH, Rigid Base, General Purpose.

Engineering Data

Output HP:0.33 Hp
Output KW:0.25 kW
Frequency:60 Hz
Voltage:230/460 V
Current:1.2/0.60 A
Speed:1725 rpm
Service Factor:1.35
Phase:3
Efficiency:73.4 %
Power Factor:70.6
Duty:Continuous
Insulation Class:B
Design Code:NO DESIGN CODE
KVA Code:M
Frame:S56
Enclosure:Drip Proof
Thermal Protection:Automatic
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:12
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:20.8 Ohms
Mounting:Resilient Base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:12.31 in
Frame Length:7.50 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 ONLY
