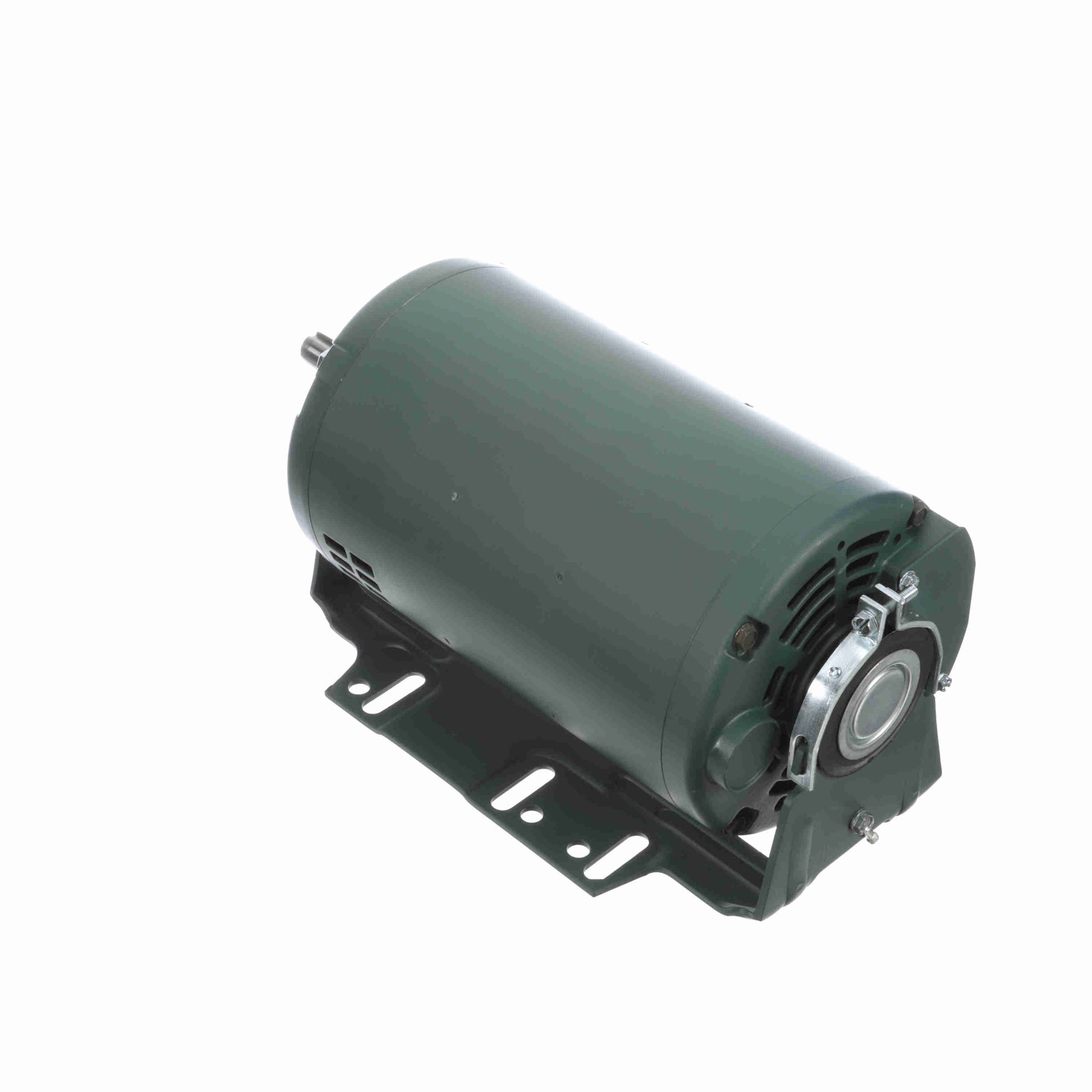

Leeson Electric E101641.00, 3/4 HP, 3500 RPM, 56H FR, 230/460 Vac, 3 PH, DP, Resilient Base, General Purpose.

E101641.00, 3/4 HP, 3500 RPM, 56H FR, 230/460 Vac, 3 PH, DP, Resilient Base, General Purpose.

Engineering Data

Output HP:0.75 Hp
Output KW:0.56 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:2.4/1.2 A
Speed:3450 rpm
Service Factor:1.25
Phase:3
Efficiency:79 %
Power Factor:74
Duty:Continuous
Insulation Class:B
Design Code:NO DESIGN CODE
KVA Code:K
Frame:56H
Enclosure:Drip Proof
Thermal Protection:Automatic
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:2
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Resilient Base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:10.81 in
Frame Length:6.00 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 ONLY
