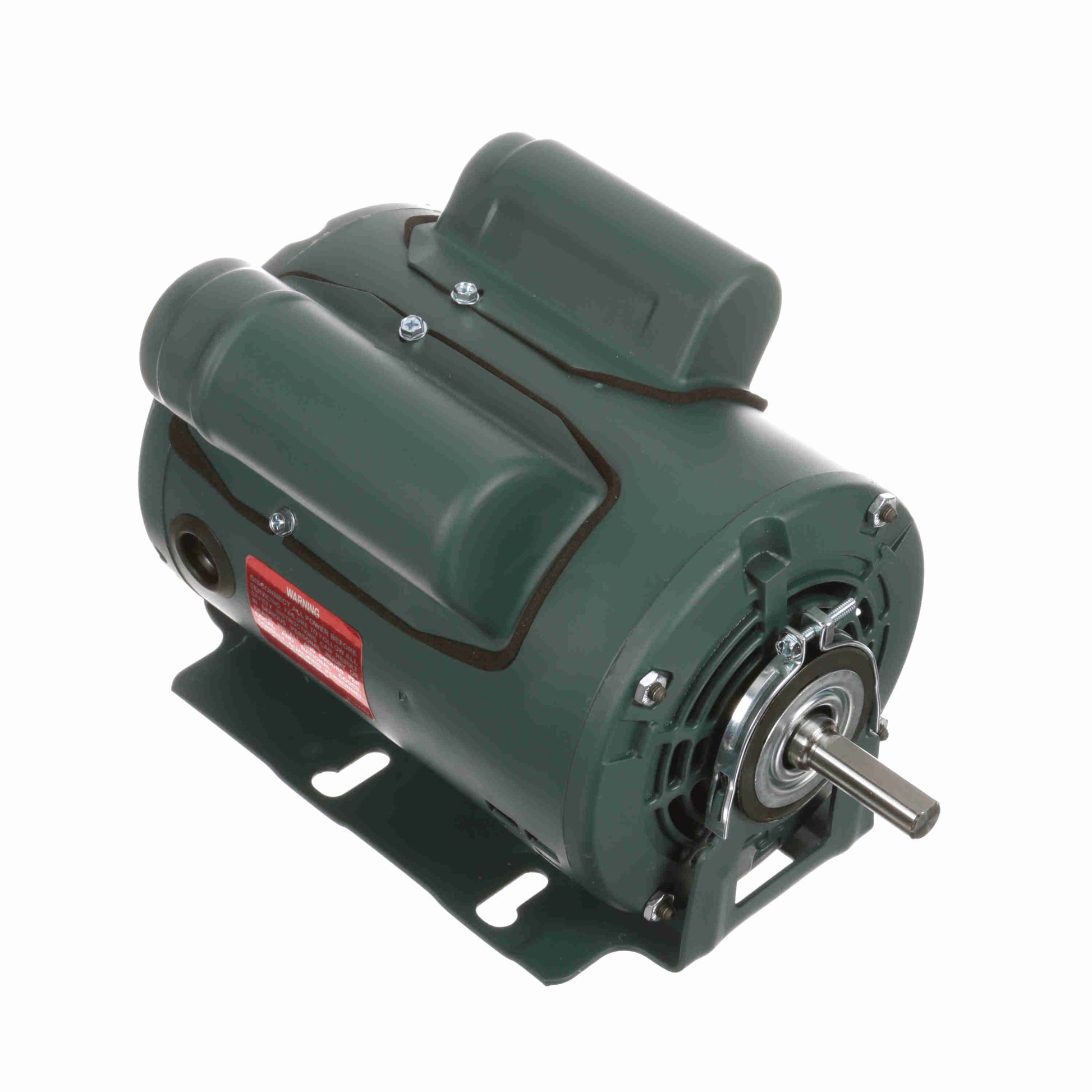

Leeson Electric E103083.00, 1/3 Hp, 1800 Rpm, S56C FR, 115/230 Vac, 1 PH, DP, Rigid Base, General Purpose.

E103083.00, 1/3 Hp, 1800 Rpm, S56C FR, 115/230 Vac, 1 PH, DP, Rigid Base, General Purpose.

Engineering Data

Output HP:0.33 Hp
Output KW:0.25 kW
Frequency:60 Hz
Voltage:115/230 V
Current:3.8/1.9 A
Speed:1755 rpm
Service Factor:1.35
Phase:1
Efficiency:72.4 %
Power Factor:79
Duty:Continuous
Insulation Class:B
Design Code:N
KVA Code:L
Frame:S56C
Enclosure:Drip Proof
Thermal Protection:Manual
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:12
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:10.99 in
Frame Length:7.00 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 ONLY
