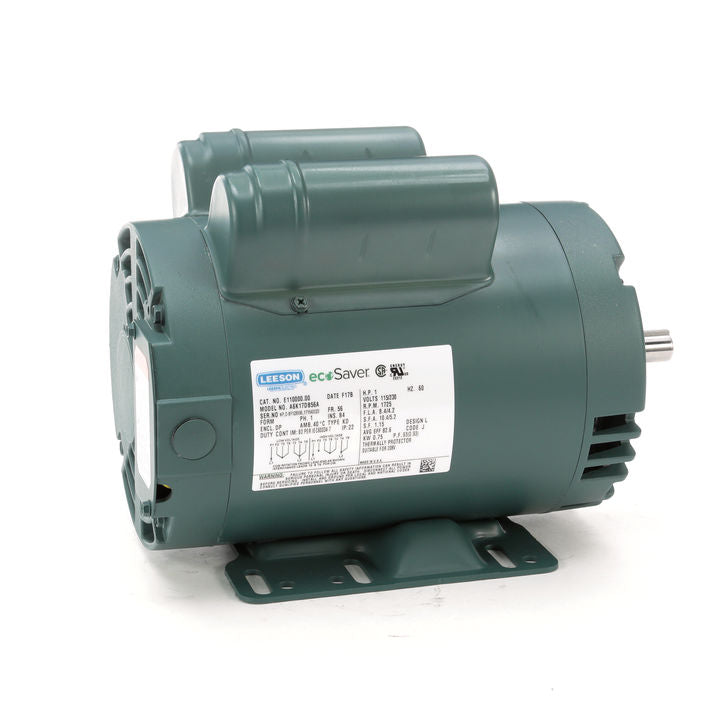

Leeson Electric E110007.00, 1 HP, 1800 RPM, 56H FR, 115/230 Vac, 1 PH, DP, Rigid Base, General Purpose

E110007.00, 1 HP, 1800 RPM, 56H FR, 115/230 Vac, 1 PH, DP, Rigid Base, General Purpose

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:115/230 V
Current:8.4/4.2 A
Speed:1725 rpm
Service Factor:1.15
Phase:1
Efficiency:82.6 %
Power Factor:93
Duty:Continuous
Insulation Class:F
Design Code:L
KVA Code:J
Frame:56H
Enclosure:Drip Proof
Thermal Protection:Automatic
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:22
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:2.02 Ohms
Mounting:Resilient Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:12.82 in
Frame Length:7.00 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 Only
