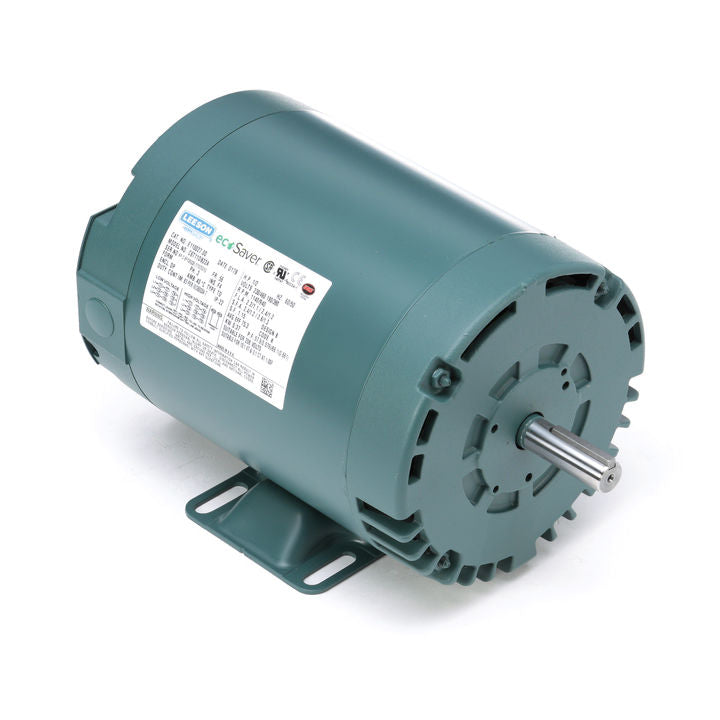

Leeson Electric E110027.00, 1/2 HP, 1200 RPM, 56 FR, DP, 208-230/460 Vac, 3 PH, Rigid Base, General Purpose

**This motor has been replaced by model# G067B**
E110027.00, 1/2 HP, 1200 RPM, 56 FR, DP, 208-230/460 Vac, 3 PH, Rigid Base, General Purpose.

General Specifications

Model : C6T11DB22A
Catalog No : E110027.00
Part Description : ..1/2HP..1140RPM.56.DP.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.C6T11DB22.....GENERAL PURPOSE.T-STAT.......
Category : Open Drip Proof (ODP)Stock : No
Nameplate Specifications
Output HP : 0.5 Hp
Output KW : 0.37 kWFrequency : 60 HzVoltage : 230/460 V
Current : 2.2/1.1 A
Speed : 1140 rpmService Factor : 1.15 Phase : 3 Efficiency : 75.3 %Duty : CONTINUOUS Insulation Class : F Design Code : B KVA Code : K Frame : 56
Enclosure : DP Overload Protector : NOT Ambient Temperature : 40 °CDrive End Bearing Size : 6203 Opp Drive End Bearing Size : 6203 UL : Recognized CSA : Y
CE : Y IP Code : 22
Technical Specifications
Electrical Type : SQ CAGE INV RATED Starting Method : LINE OR INVERTER Poles : 6 Rotation : REV Mounting : RIGID Motor Orientation : HORIZONTAL Drive End Bearing : BALL Opp Drive End Bearing : BALL Frame Material : ROLLED STEEL Shaft Type : STANDARD 56 Overall Length : 10.87 inFrame Length : 6 inShaft Diameter : 0.63 in
Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720041772 Weight : 21.00 LB
