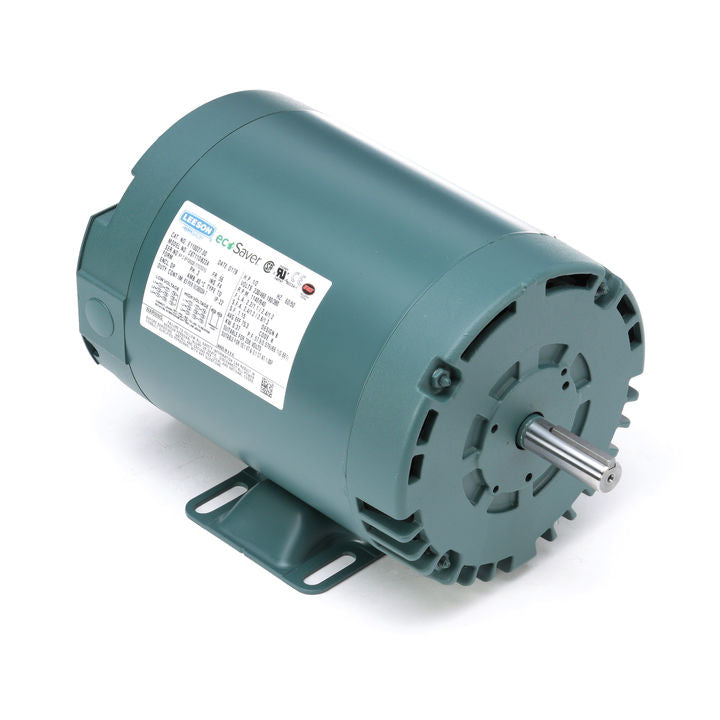

Leeson Electric E110028.00, 3/4 HP, 1200 RPM, 56 FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose.

**This motor has been replaced by Model# FX34BK005** E110028.00, 3/4 HP, 1200 RPM, 56 FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose. General Specifications Output HP:0.75 Hp Output KW:0.56 kW Frequency:60/50 Hz Voltage:230/460 V Current:2.8/1.4 A Speed:1140 rpm Service Factor:1.15 Phase:3 Efficiency:81.7 % Power Factor:64.2 Duty:Continuous Insulation Class:F Design Code:B KVA Code:J Frame:56 Enclosure:Drip Proof Thermal Protection:No Ambient Temperature:40 °C Drive End Bearing Size:6203 Opp Drive End Bearing Size:6203 UL:Recognized CSA:Y CE:Y IP Code:22 Technical Specifications Electrical Type:Squirrel Cage Inverter Rated Starting Method:Line Or Inverter Poles:6 Rotation:Reversible Resistance Main:0 Ohms Mounting:Rigid base Motor Orientation:HORIZONTAL Drive End Bearing:BALL Opp Drive End Bearing:BALL Frame Material:Rolled Steel Shaft Type:NEMA 56 Overall Length:11.87 in Frame Length:7.00 in Shaft Diameter:0.625 in Shaft Extension:1.88 in Assembly/Box Mounting:F1 ONLY
