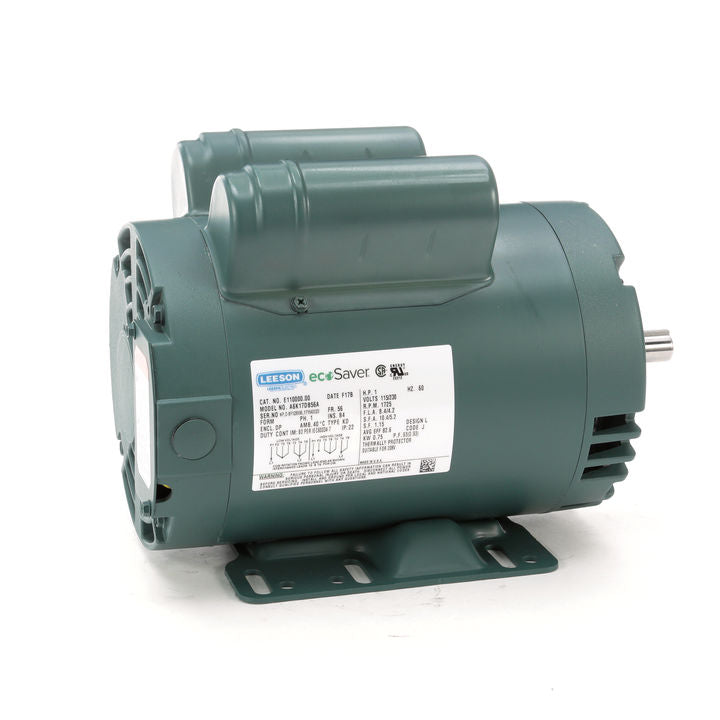

Leeson Electric E110097.00, 1 HP, 3600 RPM, 56 FR, DP, 115/230 Vac, 1 PH, Rigid Base, General Purpose

E110097.00, 1 HP, 3600 RPM, 56 FR, DP, 115/230 Vac, 1 PH, Rigid Base, General Purpose

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:115/230 V
Current:7.8/3.9 A
Speed:3450 rpm
Service Factor:1.25
Phase:1
Efficiency:80.4 %
Power Factor:99
Duty:Continuous
Insulation Class:B
Design Code:L
KVA Code:J
Frame:56
Enclosure:Drip Proof
Thermal Protection:Manual
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:22
Technical Specifications
Electrical Type:Capacitor Start Induction Run
Starting Method:Across The Line
Poles:2
Rotation:Selective Counterclockwise
Resistance Main:.526 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:11.37 in
Frame Length:6.50 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 ONLY
