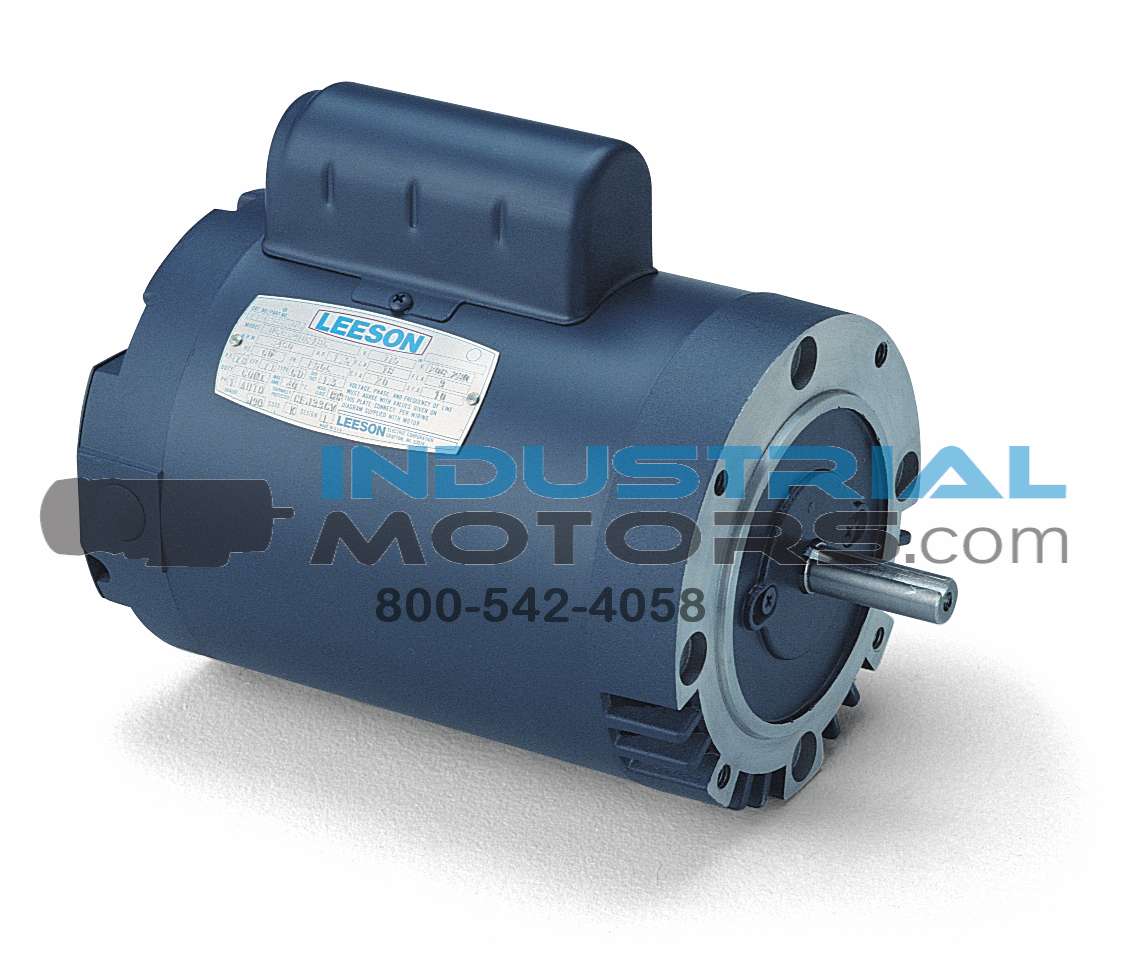

E110381.00, 1/2 HP, 1200 RPM, 56C FR, DP, 115/208-230 Vac, 1 PH, C-Face Less Base, Capacitor Start, General Purpose

E110381.00, 1/2 HP, 1200 RPM, 56C FR, DP, 115/208-230 Vac, 1 PH, C-Face Less Base, Capacitor Start, General Purpose.

Engineering Data
Volts 115 Volts 230 Volts
F.L. Amps 5.2 F.L. Amps 2.6 F.L. Amps
S. F Amps 6.2 S. F Amps 3.1 S. F Amps

RPM 1200 Hertz 60
HP 1/2 Duty CONTINUOUS TYPE KD
KW 0.37
Frame 56C Serv. Factor 1.25 Phase 1
Max Amb 40 Design L Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 76.2 Eff 75% PF 84
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6203
Load Type Inverter Type Speed Range NONE

Motor Wt. 37 LB Enclosure DP Lubrication POLYREX EM
Nameplate 10000417-001-001 Mounting ROUND Rotation SELECTIVE CCW
Assembly Shaft Dia. 5/8 IN Ext. Diag. 005054.01
Cust Part No Outline 607-0201-750B Ext. Diag2
Packaging B Outline Dash No Winding K63650
Carton Label Individual Leeson ECOSaver GROUP : 3
Iris Paint GREEN - LEESON WATTSAVER Test Card 01

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP : VDC
Class GROUP : ADC
Brake Coil OHMs @25 C

Performance
Torque UOM OZ-FT Inertia (WK²) .117 LB-FT^2
Torque 36.06(Full Load) 79.75(Break Down) 57.05(Pull Up) 103.03(Locked Rotor)
CURRENT (amps) 2.55(Full Load) 7.76(Break Down) 10.65(Pull Up) 19.15(Locked Rotor)
Efficiency (%) 0(Full Load) 72(75% Load) 63.6(50% Load) 44.6(25% Load)
PowerFactor 0(Full Load) 81.3(75% Load) 76.4(50% Load) 63.2(25% Load)

Load Curve Data @60 Hz , NONE Volts , 1/2 Horsepower
Load Amps KW2 RPM Torque EFF PF Rise By Resis Frame Rise
0.0 1.35 0.16 1198 0.0 0.0 41.3 0.0 -
0.25 1.44 0.21 1193 8.84 44.6 63.2 0.0 -
0.5 1.67 0.293 1188 17.69 63.6 76.4 0.0 -
0.75 2.07 0.389 1181 26.71 72.0 81.3 0.0 -
1.0 2.54 0.492 1173 35.88 77.0 84.0 0.0 -
1.25 3.04 0.603 1165 45.12 77.3 85.8 0.0 -
1.5 3.66 0.73 1154 54.7 76.7 86.5 0.0 -
