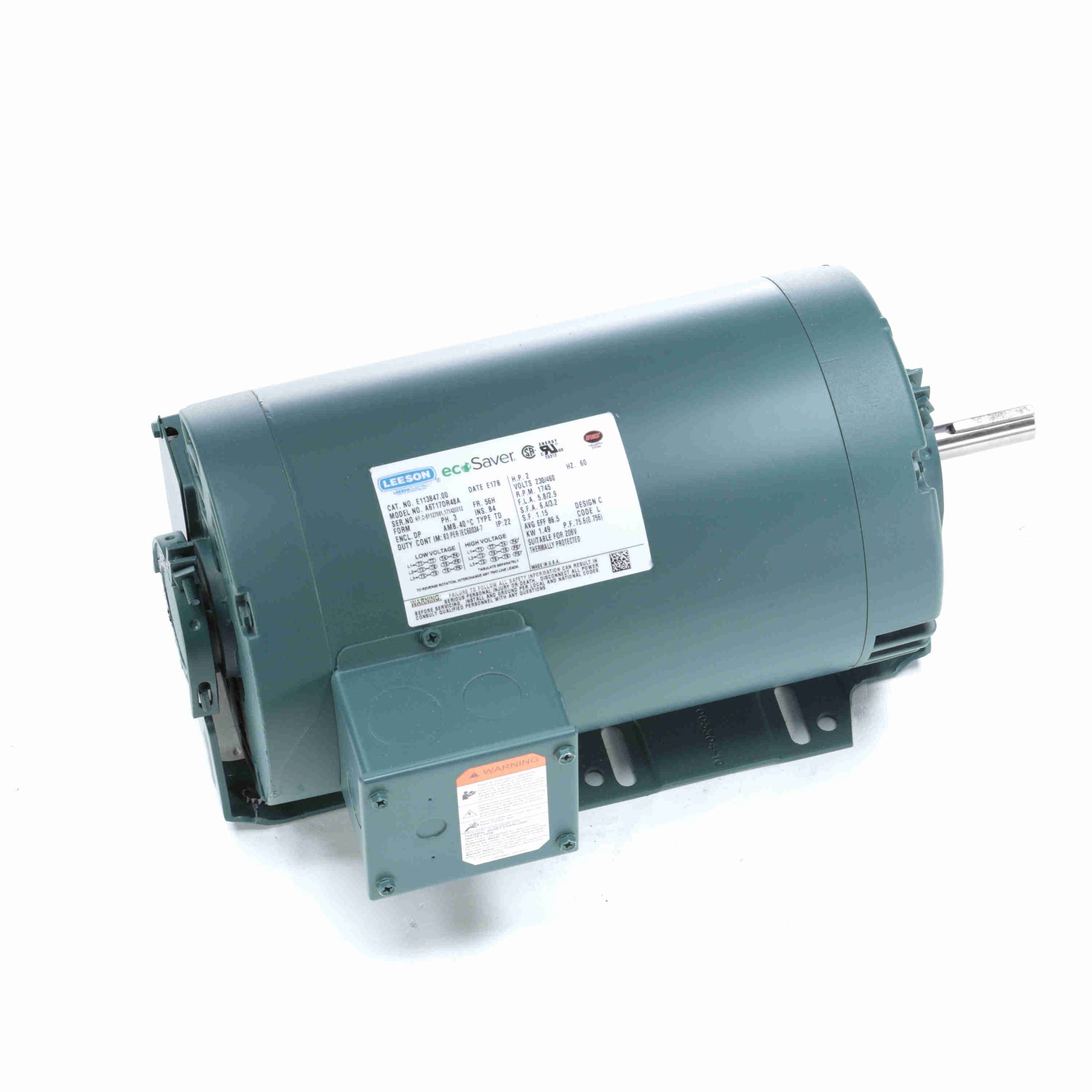

Leeson Electric E111311.00, 1 HP, 1800 RPM, 56H FR, 230/460 Vac, 3 PH, DP, Resilient Base, General Purpose Motor.

E111311.00, 1 HP, 1800 RPM, 56H FR, 230/460 Vac, 3 PH, DP, Resilient Base, General Purpose Motor.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:230/460 V
Current:3.2/1.6 A
Speed:1760 rpm
Service Factor:1.15
Phase:3
Efficiency:83.5 %
Power Factor:68.5
Duty:Continuous
Insulation Class:B
Design Code:B
KVA Code:N
Frame:56H
Enclosure:Drip Proof
Thermal Protection:Automatic
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:N
IP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Resilient Base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:13.82 in
Frame Length:7.00 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 ONLY
