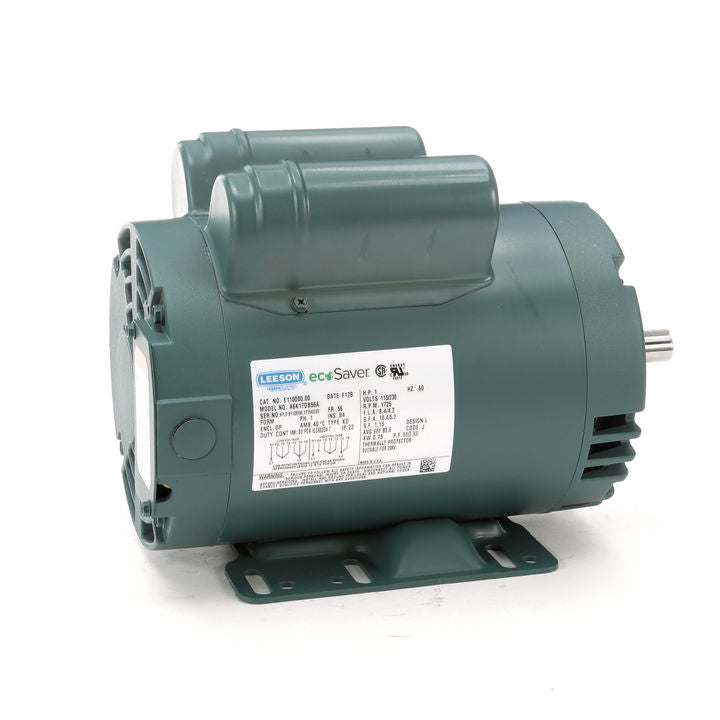

Leeson Electric E113608.00, 2 HP, 1800 RPM, 56H FR, 115/208-230 Vac, 1 PH, DP, Rigid Base, General Purpose Motor

E113608.00, 2 HP, 1800 RPM, 56H FR, 115/208-230 Vac, 1 PH, DP, Rigid Base, General Purpose Motor

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:16.0/8.7-8.0 A
Speed:1725 rpm
Service Factor:1.15
Phase:1
Efficiency:84.5 %
Power Factor:97.7
Duty:Continuous
Insulation Class:B
Design Code:L
KVA Code:J
Frame:56H
Enclosure:Drip Proof
Thermal Protection:Automatic
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized ( Not Protector)
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:2.54 Ohms
Mounting:Resilient Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:14.63 in
Frame Length:10.15 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 Only
