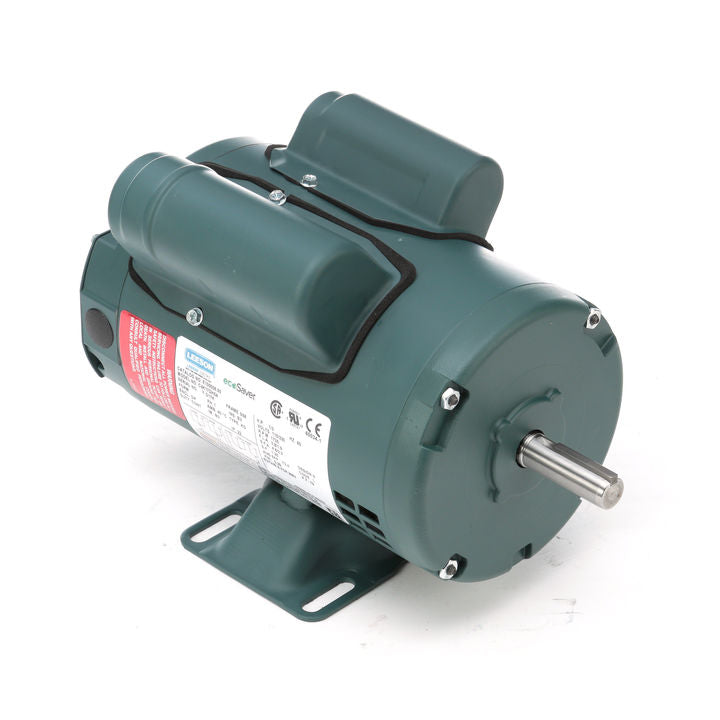

Leeson Electric E119348.00, 3/4 HP, 1800 RPM, 56 FR, DP, 115/208-230 Vac, 1 PH, Rigid Base, Capacitor Start, General Purpose

E119348.00, 3/4 HP, 1800 RPM, 56 FR, DP, 115/208-230 Vac, 1 PH, Rigid Base, Capacitor Start, General Purpose.

General Specifications

Model : C6K17DB51ACatalog No : E119348.00Part Description : ..3/4HP..1800RPM.56.ODP.115/230V.1PH.60HZ.CONT.40C.1.25S.F..RIGID BASE......GENERAL PURPOSE.NOT.......Category : Open Drip Proof (ODP)Stock : No
Nameplate Specifications
Output HP : 0.75 HpOutput KW : 0.56 kWFrequency : 60 HzVoltage : 115/230 VCurrent : 6.6/3.3 ASpeed : 1725 rpmService Factor : 1.25 Phase : 1 Efficiency : 81.8 %Duty : CONTINUOUS Insulation Class : B Design Code : N KVA Code : L Frame : 56 Enclosure : DP Overload Protector : NOT Ambient Temperature : 40 °CDrive End Bearing Size : 6203 Opp Drive End Bearing Size : 6203 UL : Recognized CSA : Y CE : N IP Code : 22
Technical Specifications
Electrical Type : CAP START IND RUN Starting Method : ACROSS THE LINE Poles : 4 Rotation : SELECTIVE CCW Mounting : RIGID Motor Orientation : HORIZONTAL Drive End Bearing : BALL Opp Drive End Bearing : BALL Frame Material : ROLLED STEEL Shaft Type : STANDARD 56 Overall Length : 13.15 inFrame Length : 7.38 inShaft Diameter : 0.63 inShaft Extension : 1.88 inAssembly/Box Mounting : F1 ONLY UPC : 691720028186 Weight : 40.00 LB
