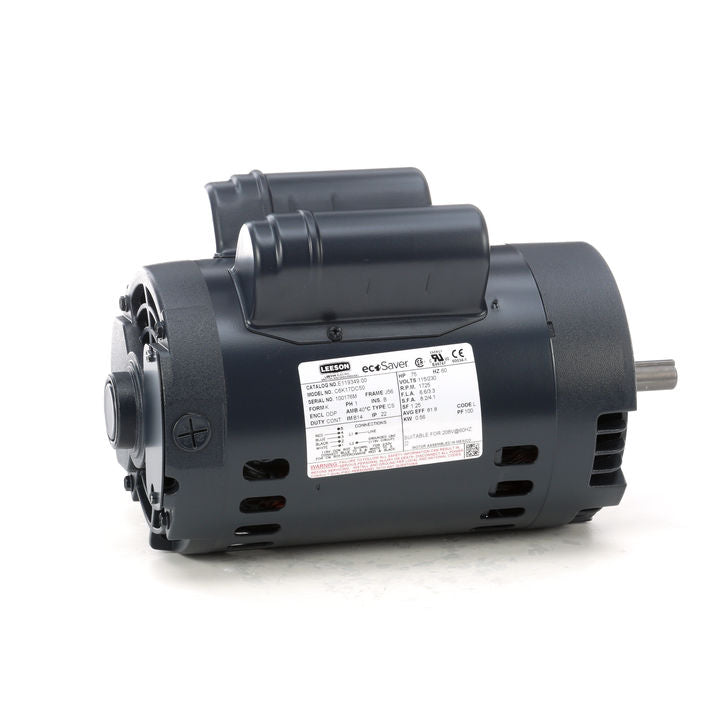

Leeson Electric E119349.00, 3/4 HP, 1800 RPM, S56C FR, 115/208-230 Vac, 1 PH, DP, C Face Less Base, General Purpose

E119349.00, 3/4 HP, 1800 RPM, S56C FR, 115/208-230 Vac, 1 PH, DP, C Face Less Base, General Purpose

Engineering Data

Volts 115 Volts 230 Volts
FL Amps 6.6 FL Amps 3.3 FL Amps
SF Amps 8.0 SF Amps 4.0 SF Amps

RPM 1800 Hertz 60
HP 3/4 Duty CONTINUOUS Type KD
KW 0.56 SF 1.25 Phase 1
Frame 56C Design L KVA Code L
Ambient 40 Protection NOT Therm.Prot.
Insulation Class B Eff(75%) PF 97
Eff(100%) 81.8 CSA Y Bearing OPE 6203
UL Y-(LEESON UL REC) CE N Bearing PE 6203
CC Number EXEMPT Inverter Type Speed Range NONE
LOad Type

Motor Wt. 30 LB Enclosure DP Lubrication POLYREX EM
Nameplate 10000417-001-001 Mounting ROUND Rotation SELECTIVE CCW
Shaft Diam. Cust Part No. Packaging F
Winding SS0053728 Carton Label
Group 3 Iris
Paint BLUE - LEESON (ENAMEL) Hazardous Location NONE
