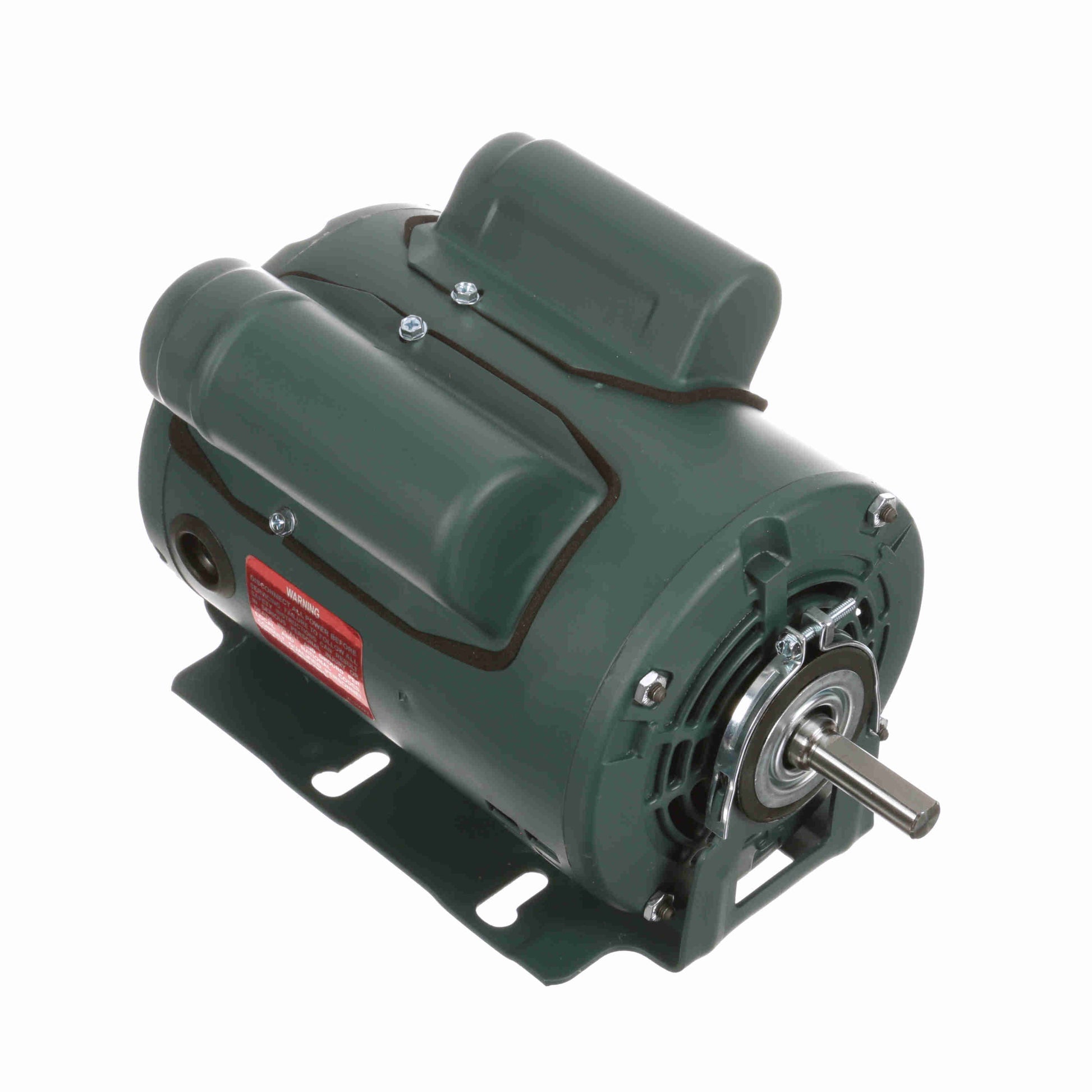

Leeson Electric E119362.00, 3/4 Hp, 1800 Rpm, 56 FR, 115/230 Vac, 1 PH, DP, Resilient Base, Fan & Blower Motor, General Purpose.

E119362.00, 3/4 Hp, 1800 Rpm, 56 FR, 115/230 Vac, 1 PH, DP, Resilient Base, Fan & Blower Motor, General Purpose.

Engineering Data

Output HP:0.75 Hp
Output KW:0.56 kW
Frequency:60 Hz
Voltage:115/230 V
Current:6.6/3.3 A
Speed:1725 rpm
Service Factor:1.25
Phase:1
Efficiency:81.8 %
Power Factor:97.2
Duty:Continuous
Insulation Class:B
Design Code:N
KVA Code:L
Frame:56
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:1.9 Ohms
Mounting:Resilient Base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:13.21 in
Frame Length:7.44 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 Only
