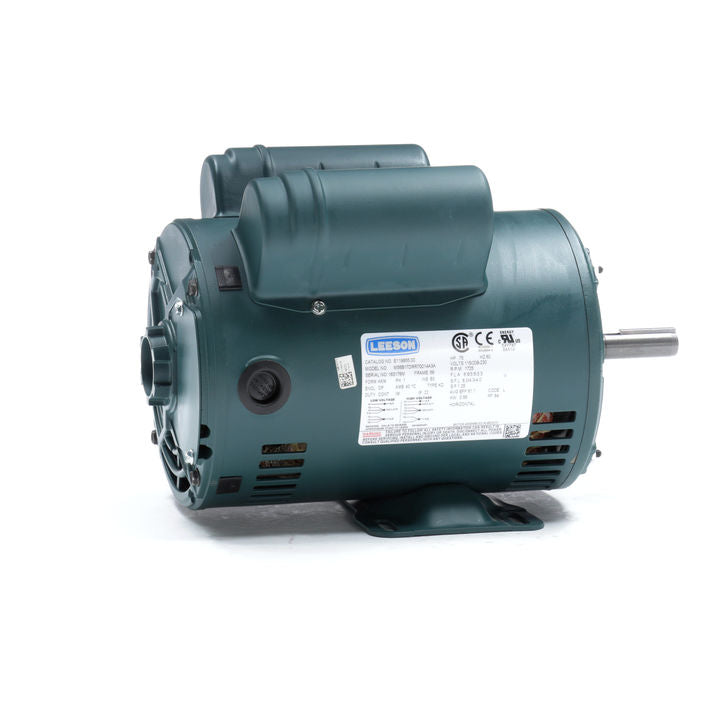

Leeson Electric E119855.00, 3/4 Hp, 1800 Rpm, 56 FR, DP, 115/208-230 Vac, 1 PH, Rigid Base, Capacitor Start, General Purpose

E119855.00, 3/4 Hp, 1800 Rpm, 56 FR, DP, 115/208-230 Vac, 1 PH, Rigid Base, Capacitor Start, General Purpose

Engineering Data

Volts 115 Volts 208-230 Volts
FL Amps 6.6 FL Amps 3.5-3.3 FL Amps
SF Amps 8 SF Amps 4.3-4 SF Amps

RPM 1800 Hertz 60
HP 3/4 Duty CONTINUOUS Type KD
KW .56 SF 1.25 Phase 1
Frame 56 Design N KVA Code L
Ambient 40 Protection MANUAL Therm.Prot. CET64DB
Insulation Class B Eff(75%) PF 91
Eff(100%) 81.8 CSA Y Bearing OPE 6203
UL M - LE,SP-INS,CONST,MANUAL PRT LOCK AND RUN UL REC CE Y Bearing PE 6203
CC Number EXEMPT Inverter Type Speed Range NONE
LOad Type

Motor Wt. 37 LB Enclosure DP Lubrication POLYREX EM
Nameplate 10008645-C-A-AEK Mounting RIGID Rotation SELECTIVE CCW
Shaft Diam. 0.625 IN Cust Part No. Packaging F
Winding NB56461 Carton Label
Group 3 Iris
Paint GRAY (POWDER) Hazardous Location NONE Test Card
