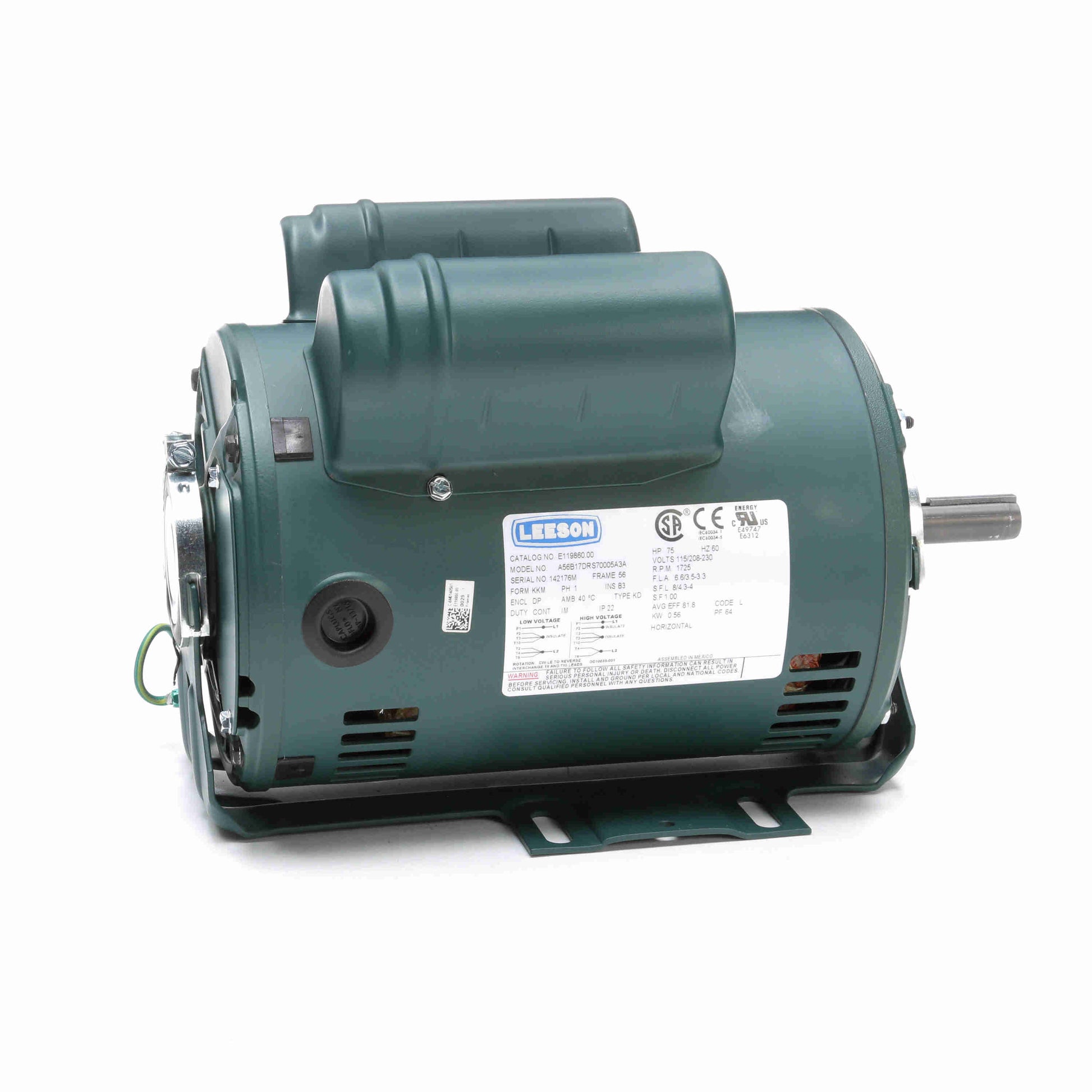

Leeson Electric E119860.00, 3/4 HP, 1800 RPM, 56 FR, 115/208-230 Vac, 1 PH, DP, Resilient Base, General Purpose

E119860.00, 3/4 HP, 1800 RPM, 56 FR, 115/208-230 Vac, 1 PH, DP, Resilient Base, General Purpose.

Engineering Data

Volts 115 Volts 208-230 Volts
F.L. Amps 6.6 F.L. Amps 3.5-3.3 F.L. Amps
S. F Amps 8 S. F Amps 4.3-4 S. F Amps
RPM 1800 Hertz 60
HP 3/4 Duty CONTINUOUS TYPE B
KW .56
Frame 56 Serv. Factor 1.25 Phase 1
Max Amb 40 Design N Code L
Insul Class B Protection AUTOMATIC Therm.Prot. CET64DX
Eff 100% 81.8 Eff 75% PF 64.0
UL A - LE,SP-INS,CONST,AUTO PRT LOCK AND RUN UL REC CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6203
Load Type Inverter Type Speed Range NONE
Motor Wt. 25 LB Enclosure DP Lubrication POLYREX EM
Nameplate DD10035-001 Mounting RESILIENT BASE Rotation SELECTIVE CCW
Assembly Shaft Dia. Ext. Diag. CDBD108
Cust Part No Outline OL56100196-001 Ext. Diag2
Packaging F Winding NB56461
Carton Label GROUP: 3
