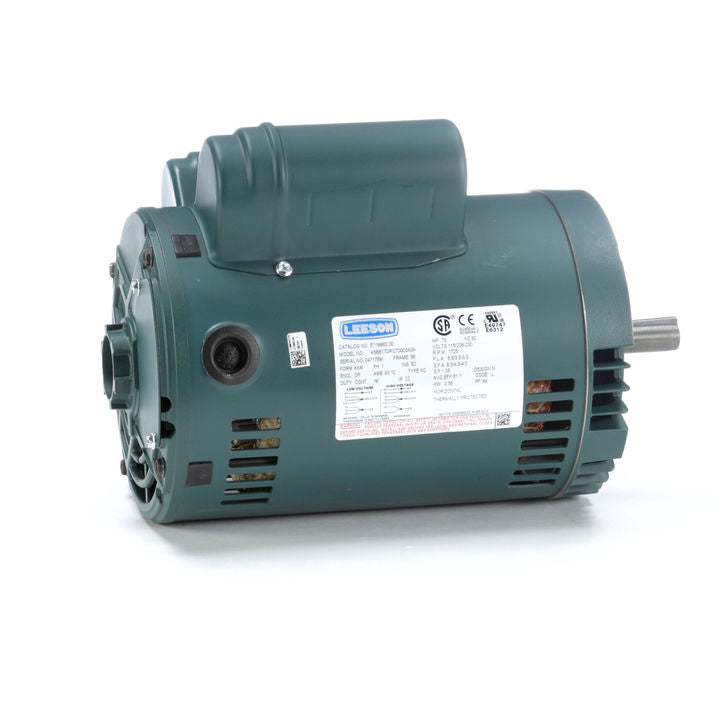

Leeson Electric E119863.00, 3/4 HP, 1800 RPM, 56C FR, 115/208-230 Vac, DP, 1 PH, General Purpose

E119863.00, 3/4 HP, 1800 RPM, 56C FR, 115/208-230 Vac, DP, 1 PH, General Purpose

Engineering Data

Output HP:0.75 Hp
Output KW:0.56 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:6.6/3.5-3.3 A
Speed:1725 rpm
Service Factor:1.25
Phase:1
Efficiency:81.8 %
Power Factor:91
Duty:Continuous
Insulation Class:B
Design Code:N
KVA Code:L
Frame:56C
Enclosure:Drip Proof
Thermal Protection:Manual
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:Y
IP Code:22
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:12.31 in
Frame Length:8.15 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 Only
