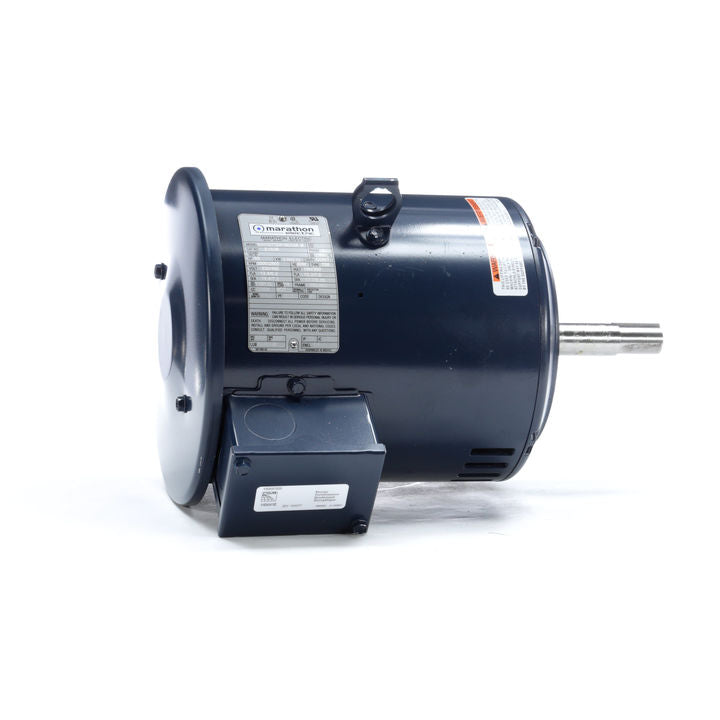

Marathon Electric E153B, 5 HP, 3600 RPM, 182JMV FR, 230/460 V, 3 PH, Rigid Base, General Purpose, 182TTDW16021.

E153B, 5 HP, 3600 RPM, 182JMV FR, 230/460 V, 3 PH, Rigid Base, General Purpose, 182TTDW16021.

General Specifications

Model : 182TTDW16021
Catalog No : E153B
Part Description : 5,3600,182JMV,DP,3/60/230/460
Category : JMStock : No

Nameplate Specification

Output HP : 5 Hp
Output KW : 3.7 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 12.4/6.2 A
Speed : 3500 rpm
Service Factor : 1.15
Phase : 3
Efficiency : 86.5 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : J
Frame : 182JMV
Enclosure : DP
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6207
Opp Drive End Bearing Size : 6205
UL : Recognized
CSA : Y
CE : Y
IP Code : 12

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 2
Rotation : REV
Mounting : ROUND
Motor Orientation : SHAFT DOWN
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : JM
Overall Length : 14.95 in
Frame Length : 9 in
Shaft Diameter : 0.88 in
Shaft Extension : 4.25 in
Assembly/Box Mounting : F1 ONLY
UPC : 722856050922
Weight : 46.00 LB
