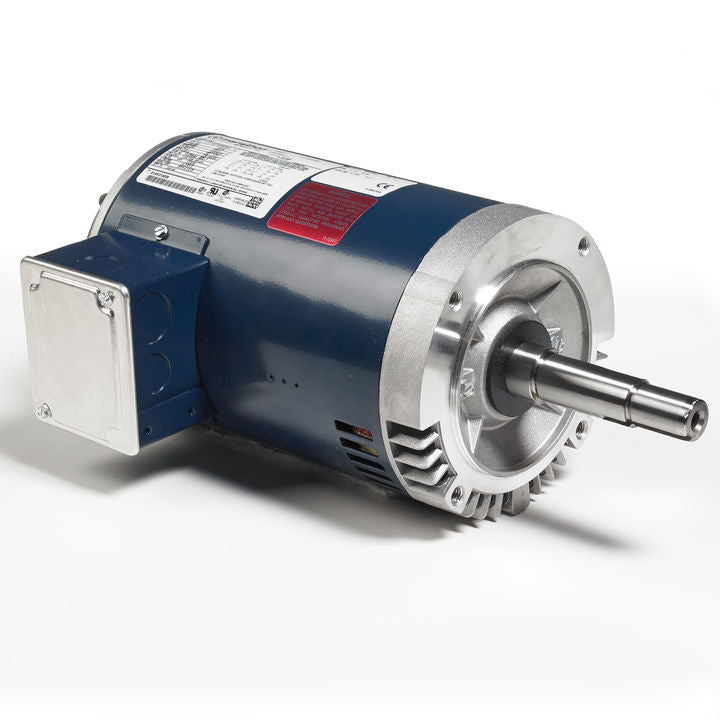

Marathon Electric E167A, 71/2 HP, 1800 RPM, 213JMV FR, 200 Vac, 3 PH, Rigid Base, General Purpose, 213TTDWD16347.

E167A, 71/2 HP, 1800 RPM, 213JMV FR, 200 Vac, 3 PH, Rigid Base, General Purpose, 213TTDWD16347.

General Specifications

Model : 213TTDWD16347
Catalog No : E167A
Part Description : 7 1/2,1800,DP,213JMV,3/60/200
Category : JM
Stock : No
Nameplate Specifications

Output HP : 7.5 Hp
Output KW : 5.6 kW
Frequency : 60 Hz
Voltage : 200 V
Current : 23 A
Speed : 1765 rpm
Service Factor : 1.15
Phase : 3
Efficiency : 91 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : H
Frame : 213JMV
Enclosure : DP
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y
CE : Y
IP Code : 22

Technical Specifications

Electrical Type : SQ CAGE IND RUN S
tarting Method : ACROSS THE LINE
Poles : 4
Rotation : REV
Mounting : ROUND
Motor Orientation : SHAFT DOWN
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : JM
Overall Length : 18.94 in
Shaft Diameter : 1.38 in
Shaft Extension : 4.28 in
Assembly/Box Mounting : F1/F2
CAPABLE UPC : 722856050977
