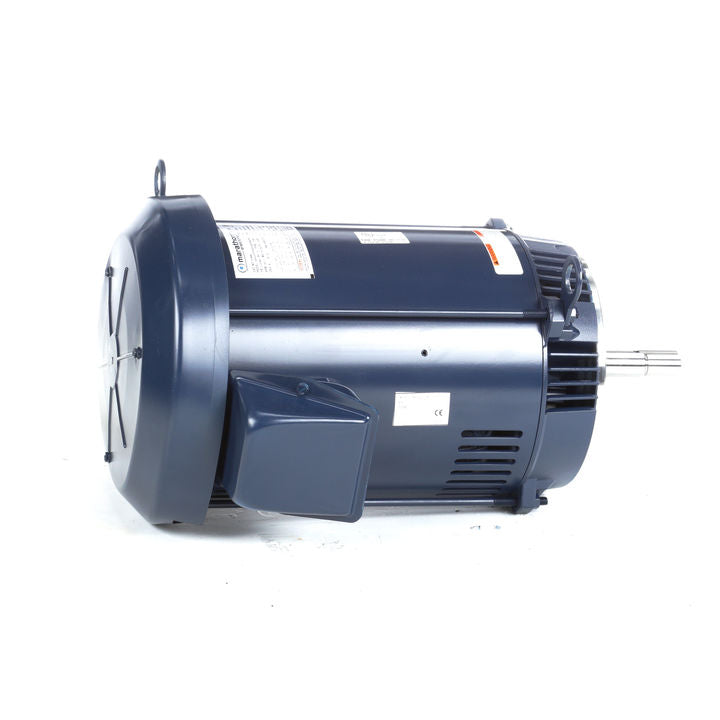

Marathon Electric E168A, 71/2 HP, 1800 RPM, 213JMV FR, 230/460 V, 3 PH, Rigid Base, General Purpose, 213TTDWD16333.

E168A, 71/2 HP, 1800 RPM, 213JMV FR, 230/460 V, 3 PH, Rigid Base, General Purpose, 213TTDWD16333.

Engineering Data

Model : 213TTDWD16333
Catalog No : E168A
Part Description : 7 1/2,1800,213JMV,DP,3/60/230/460
Category : JM
Stock : Yes

Nameplate Specifications

Output HP : 7.5 Hp
Output KW : 5.6 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 20/10 A
Speed : 1765 rpm
Service Factor : 1.15
Phase : 3
Efficiency : 91 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B KVA
Code : H
Frame : 213JMV
Enclosure : DP
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y
CE : Y
IP Code : 12

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 4
Rotation : REV
Mounting : ROUND
Motor Orientation : SHAFT DOWN
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : JM
Overall Length : 20.44 in
Frame Length : 11.15 in
Shaft Diameter : 0.88 in
Shaft Extension : 4.25 in
Assembly/Box Mounting : F1/F2
CAPABLE UPC : 722856050984
