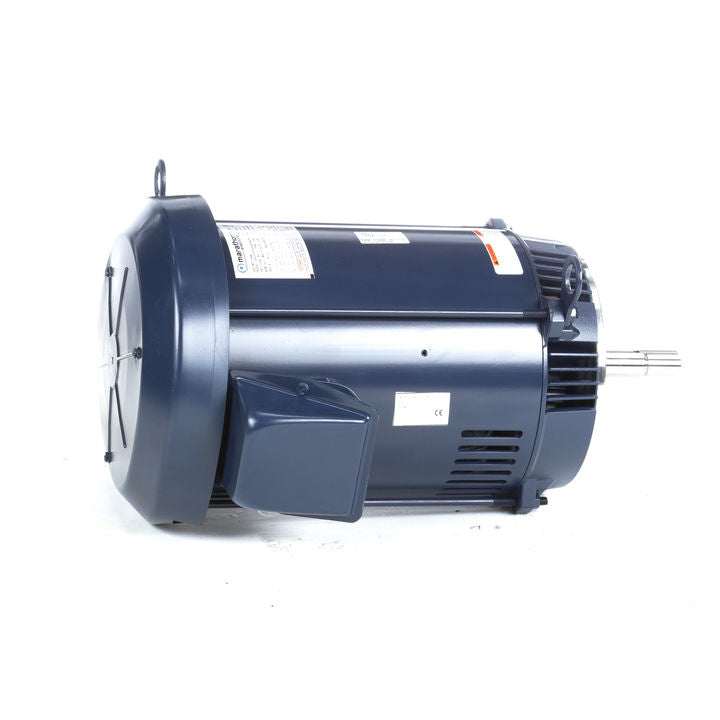

Marathon Electric E178A, 10 HP, 1800 RPM, 215JMV FR, 230/460 V, 3 PH, Rigid Base, General Purpose, 215TTDWD16349

E178A, 10 HP, 1800 RPM, 215JMV FR, 230/460 V, 3 PH, Rigid Base, General Purpose, 215TTDWD16349

Engineering Data

General Specifications
Model : 215TTDWD16349
Catalog No : E178A
Part Description : 10,1800,215JMV,DP,3/60/230/460
Category : JM
Stock : Yes

Nameplate Specifications

Output HP : 10 Hp
Output KW : 7.5 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 26.2/13.1 A
Speed : 1765 rpm
Service Factor : 1.15
Phase : 3
Efficiency : 91.7 %
Duty : CONTINUOUS
Insulation Class : B
Design Code : B
KVA Code : H
Frame : 215JMV
Enclosure : DP
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y
CE : Y
IP Code : 12

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 4
Rotation : REV
Mounting : ROUND
Motor Orientation : SHAFT DOWN
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : JM
Overall Length : 20.44 in
Frame Length : 11.15 in
Shaft Diameter : 0.88 in
Shaft Extension : 4.25 in
Assembly/Box Mounting : F1/F2
CAPABLE UPC : 722856051004
