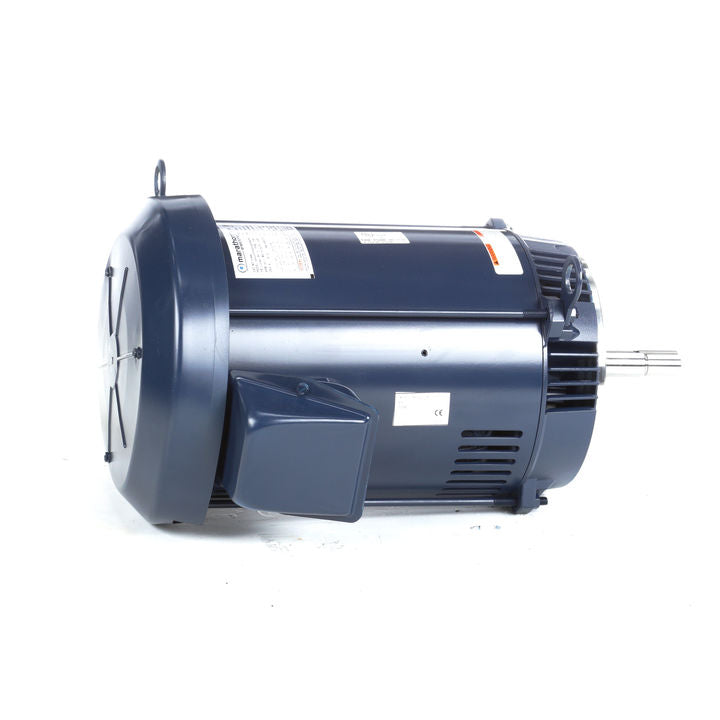

Marathon Electric E183A, 15 HP, 3600 RPM, 215JMV FR, 230/460 V, 3 PH, Dripproof, C-Face Footless, 215TTDWD4023

E183A, 15 HP, 3600 RPM, 215JMV FR, 230/460 V, 3 PH, Dripproof, C-Face Footless, 215TTDWD4023

General Specifications

Output HP : 15 Hp
Output KW : 11.2 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 36.5/18.2 A
Speed : 3525 rpm
Service Factor : 1.15
Phase : 3
Efficiency : 91 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B KVA
Code : G Frame : 215JMV
Enclosure : DP
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y
CE : Y
IP Code : 12

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 2
Rotation : REV
Mounting : ROUND
Motor Orientation : SHAFT DOWN
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : JM
Overall Length : 20.44 in
Frame Length : 11.15 in
Shaft Diameter : 0.88 in
Shaft Extension : 4.25 in
Assembly/Box Mounting : F1/F2 CAPABLE
