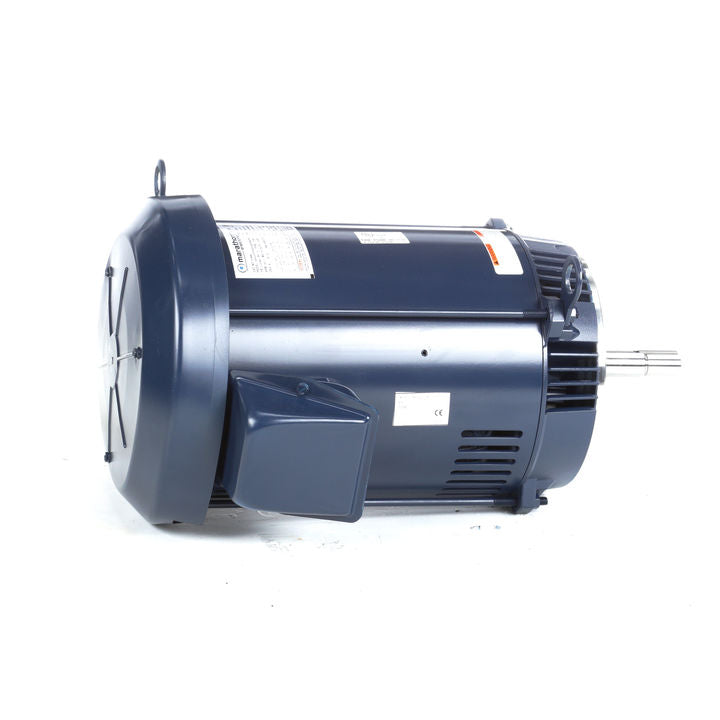

Marathon Electric E188A, 15HP, 1800 RPM, 254JMV FR, 230/460 V, 3 PH, Rigid Base, General Purpose, 254TTDR16027

E188A, 15HP, 1800 RPM, 254JMV FR, 230/460 V, 3 PH, Rigid Base, General Purpose, 254TTDR16027

General Specifications

Model : 254TTDR16027
Catalog No : E188A
Part Description : 15,1800,DP,254JMV,3/60/230/460
Category : JM
Stock : Yes

Nameplate Specifications

Output HP : 15 Hp
Output KW : 11.2 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 38/18.9 A
Speed : 1768 rpm
Service Factor : 1.15
Phase : 3
Efficiency : 93 %
Duty : CONTINUOUS
Insulation Class : B
Design Code : B KVA
Code : G
Frame : 254JMV
Enclosure : DP
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6207
Opp Drive End Bearing Size : 6309
UL : Recognized
CSA : Y
CE : Y
IP Code : 12

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 4
Rotation : REV
Mounting : ROUND
Motor Orientation : SHAFT DOWN
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : JM
Overall Length : 25.05 in
Shaft Diameter : 1.38 in
Shaft Extension : 5.28 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856051011
