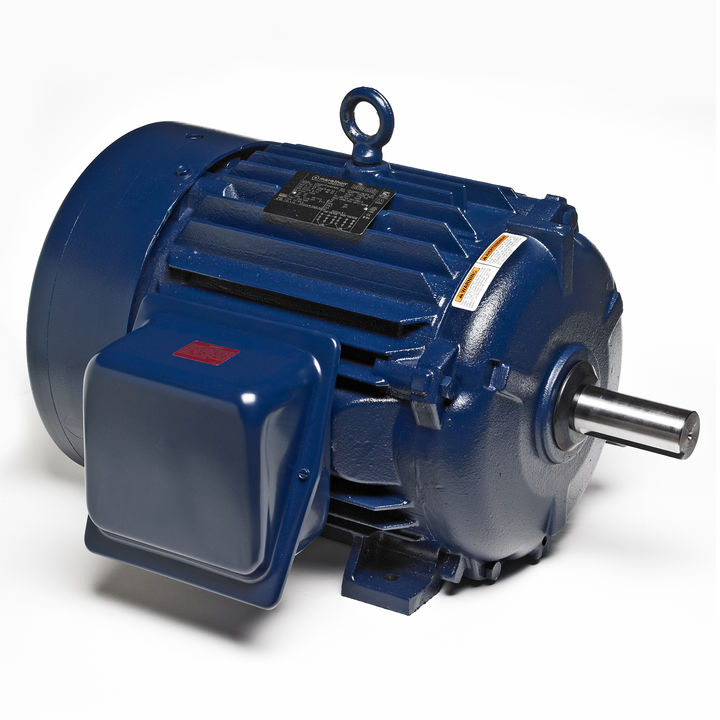

E202, 184TTFS6026, 5 Hp, 1800 Rpm, 184T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, Nema Premium XRI Efficiency Motor

E202, 184TTFS6026, 5 Hp, 1800 Rpm, 184T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, Nema Premium XRI Efficiency Motor.

Engineering Data

Technical Specifications
Output HP  5 Hp
Output KW  3.7 kW
Frequency  60 Hz
Voltage  230/460 V
Current  12.4/6.2 A
Speed  1755 rpm
Service Factor  1.15
Phases  3
Efficiency  90.2 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  J
Frame  184T
Enclosure  TEFC
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6206
Opp Drive End Bearing Size 6205
UL  Recognized
CSA  Y
CE  Y
IP Code  43

Technical Specifications

Electrical Type  SQ CAGE IND RUN
Starting Method  ACROSS THE LINE
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  T
Overall Length 15.81 in
Frame Length  6.75 in
Shaft Diameter  1.13 in
Shaft Extension  2.78 in
Assembly/Box Mounting  F1/F2 CAPABLE
