Industrial Motors

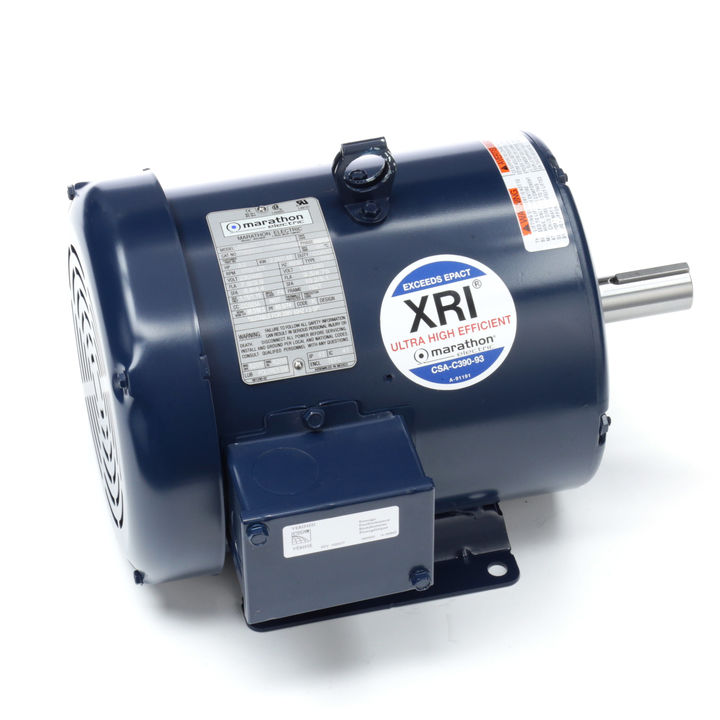

Marathon Electric E2110, 182TTFN16026, 3 Hp, 1800 Rpm, 182T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, NEMA Premium XRI Efficiency Motor

Marathon Electric E2110, 182TTFN16026, 3 Hp, 1800 Rpm, 182T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, NEMA Premium XRI Efficiency Motor

$1,354.00
$1,354.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,354.00 $1,286.30
Sale
Featured Products is no longer manufacturing this motor, possible replacement is the following Featured Products part# GT1510

**This motor has been replaced by Model# GT1510**
E2110, 182TTFN16026, 3 Hp, 1800 Rpm, 182T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, NEMA Premium XRI Efficiency Motor.

Engineering Data

60 Hertz
HP 3 Voltage 230/460
kW 2.24 FL Amps 7.8/3.9
RPM 1800
FL Eff 89.5 % SF 1.15

50 Hertz
HP 2 Voltage 190/380
kW 1.49 FL Amps 9.5/4.75
RPM 1500
FL Eff 88.5 % SF 1.15

Phase 3 Insulation Class F
Frame 182T Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting Rigid NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 (F2 Modification Available) KVA Code K
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6206
Opposite End Bearing Size 6205
Weight 74 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection None
