Industrial Motors

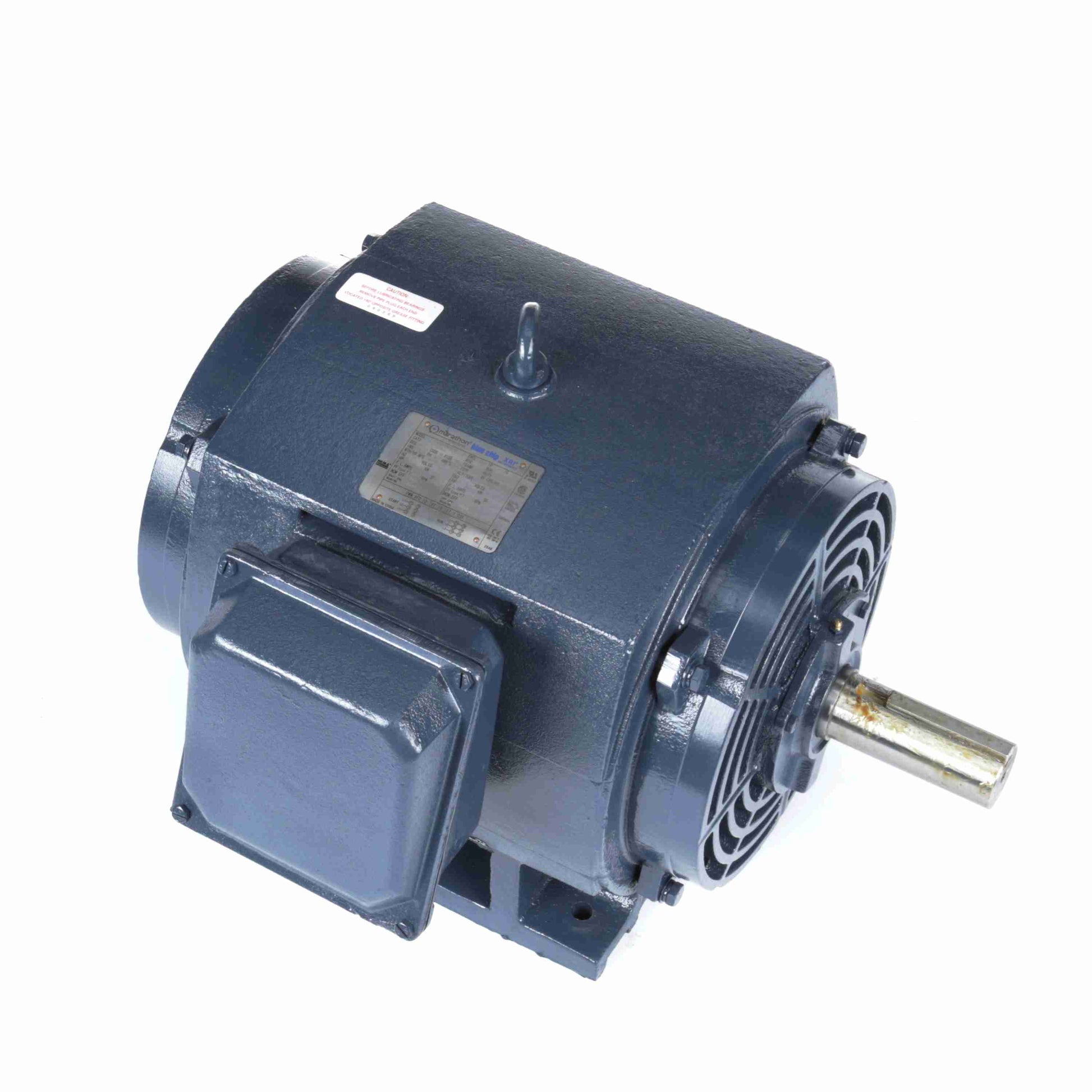

Marathon Electric E763A, 30 Hp, 1800 RPM, 286T FR, 575 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, 286TTDC6029

Marathon Electric E763A, 30 Hp, 1800 RPM, 286T FR, 575 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, 286TTDC6029

$4,572.00
$4,572.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$4,572.00 $4,343.40
Sale

E763A, 30 Hp, 1800 RPM, 286T FR, 575 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, 286TTDC6029

Engineering Data

HP 30 Voltage 575
kW 22.4 FL Amps 28.8
RPM 1800
FL Eff 92.4 % SF 1.15


Phase 3 Insulation Class B
Frame 286T Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting Rigid NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 (F2 Modification Available) KVA Code G
Drive End Bearing BALL IP Code 12
Opposite End Bearing BALL
Drive End Bearing Size 311
Opposite End Bearing Size 210
Weight 285 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection NOT
