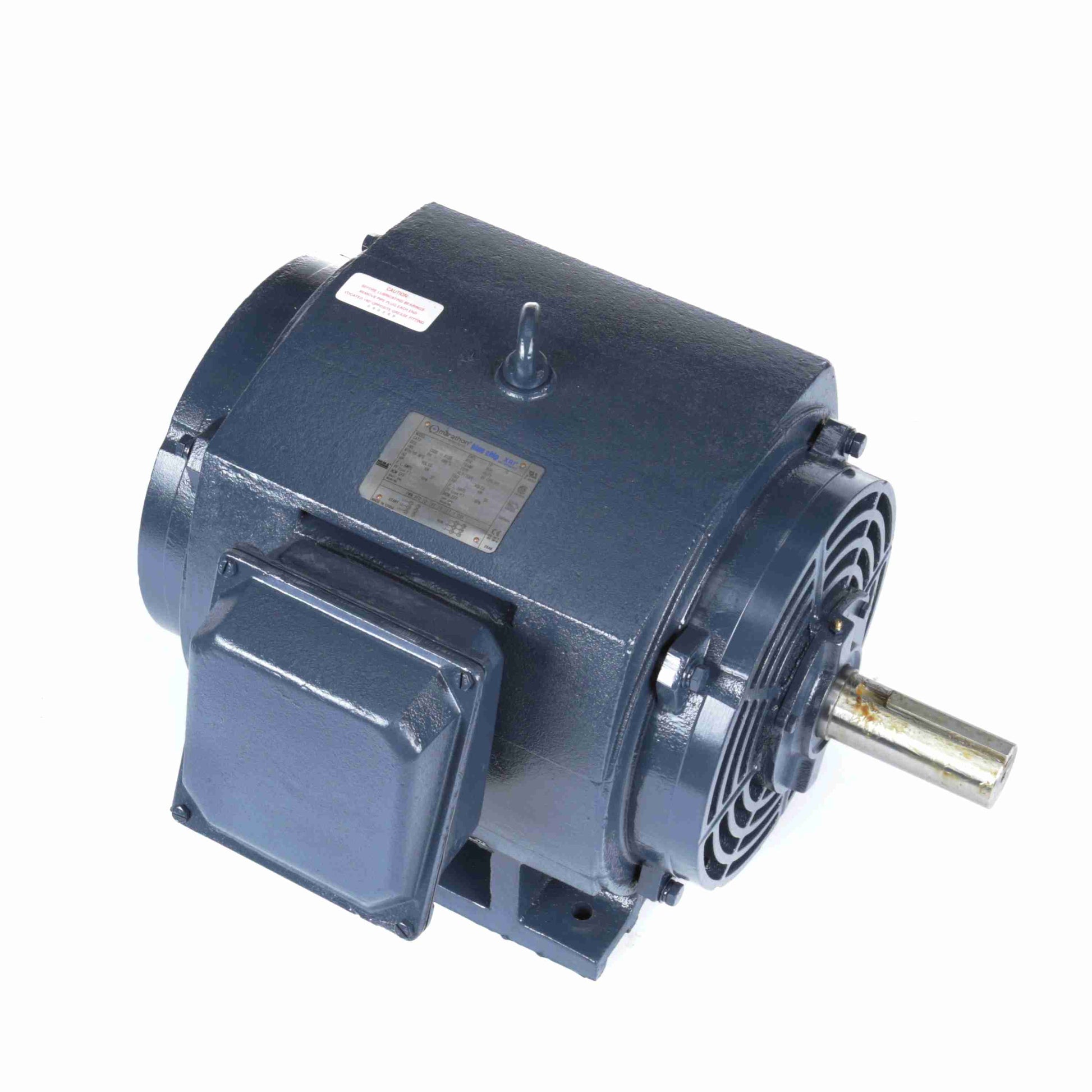

Marathon Electric E764A, 40 Hp, 1800 Rpm, 324T FR, 575 Vac, 3 PH, ODP, Rigid Base, General Purpose Motor, 324TTDC6029,

Marathon Electric E764A, 40 Hp, 1800 Rpm, 324T FR, 575 Vac, 3 PH, ODP, Rigid Base, General Purpose Motor, 324TTDC6029,

$4,913.00
$4,913.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$4,913.00 $4,667.35
Sale

E764A, 40 Hp, 1800 Rpm, 324T FR, 575 Vac, 3 PH, ODP, Rigid Base, General Purpose Motor, 324TTDC6029,

Engineering Data

60 Hertz
HP 40
Voltage 575
KW 30FL
Amps 38.5
RPM 1800
FL Eff 94.1%
SF 1.15

Phase 3
Insulation Class F
Framev 324T
Duty CONTINUOUS
Enclosure DP
Ambient 40
Mounting Rigid
NEMA Design B
Orientation HORIZONTAL
Starting Type LINE OR INVERTER
Assembly F1 (F2 Modification Available)
KVA Code G
Drive End Bearing BALL
IP Code 12
Opposite End Bearing BALL
Drive End Bearing Size 6312
Opposite End Bearing Size 6312
Weight 619LB lbs
Inverter Speed Range
CONSTANT 10:1
CE Y
CSA Y
UL Recognized Construction
Thermal Protection None
