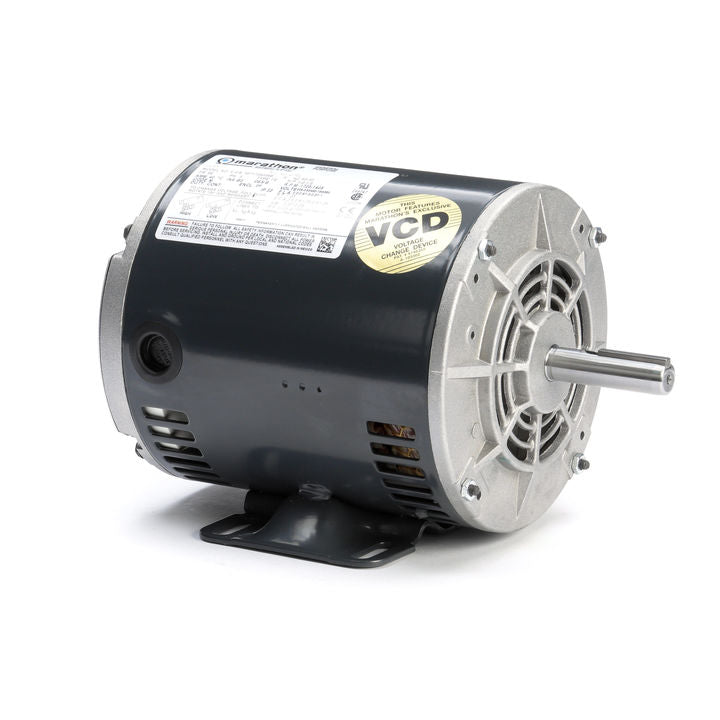

E829, 145TTTN4076, 1 Hp, 1200 Rpm, 230/460 Vac, 3 PH, 145T FR, TEFC, Rigid Base, General Purpose, EPAct Effiencies

E829, 145TTTN4076, 1 Hp, 1200 Rpm, 230/460 Vac, 3 PH, 145T FR, TEFC, Rigid Base, General Purpose, EPAct Effiencies

Nameplate Specifications

Output HP  1 Hp
Output KW  .75 kW
Frequency  60 Hz
Voltage  230/460 V
Current  3.3/1.65 A
Speed  1140 rpm
Service Factor  1.15
Phases  3
Efficiency  80 %
Duty CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  J
Frame  145T
Enclosure  TENV
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6205
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Y
CE  Y
IP Code  43

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OR INVERTER
Poles  6
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  T
Overall Length  11.43 in
Frame Length  6.25 in
Shaft Diameter  .88 in
Shaft Extension  2.56 in
Assembly/Box Mounting  F1/F2 CAPABLE
