Industrial Motors

Marathon Electric E845, 2 Hp, 1800 Rpm, 145T FR, 200 Vac, 3 PH, TEFC, Rigid Base, General Purpose, Epact Efficiency, 145TTFR4032

Marathon Electric E845, 2 Hp, 1800 Rpm, 145T FR, 200 Vac, 3 PH, TEFC, Rigid Base, General Purpose, Epact Efficiency, 145TTFR4032

$766.00
$766.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$766.00 $727.70
Sale

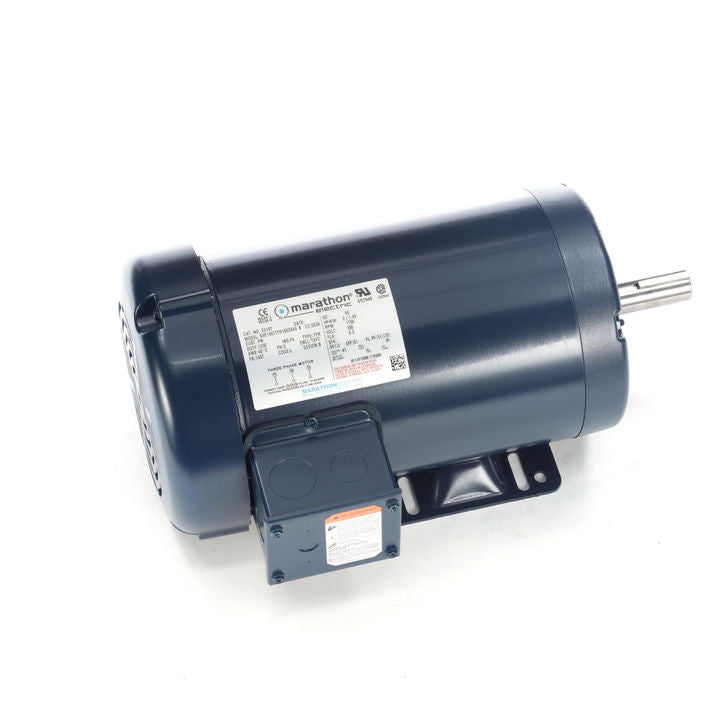

**This motor has been replaced by Model# E2157**
E845, 2 Hp, 1800 Rpm, 145T FR, 200 Vac, 3 PH, TEFC, Rigid Base, General Purpose, Epact Efficiency, 145TTFR4032.

Engineering Data

60 Hertz
HP 2 Voltage 200
kW 1.49 FL Amps 6.45
RPM 1800
FL Eff 84 % SF 1.15


Phase 3 Insulation Class F
Frame 145T Duty CONTINUOUS
Enclosure TEFC Ambient 40
Mounting Rigid NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA Code L
Drive End Bearing BALL IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 205
Opposite End Bearing Size 203
Weight 46 LB lbs
CE N CSA Y
UL Recognized Construction
Thermal Protection NOT
