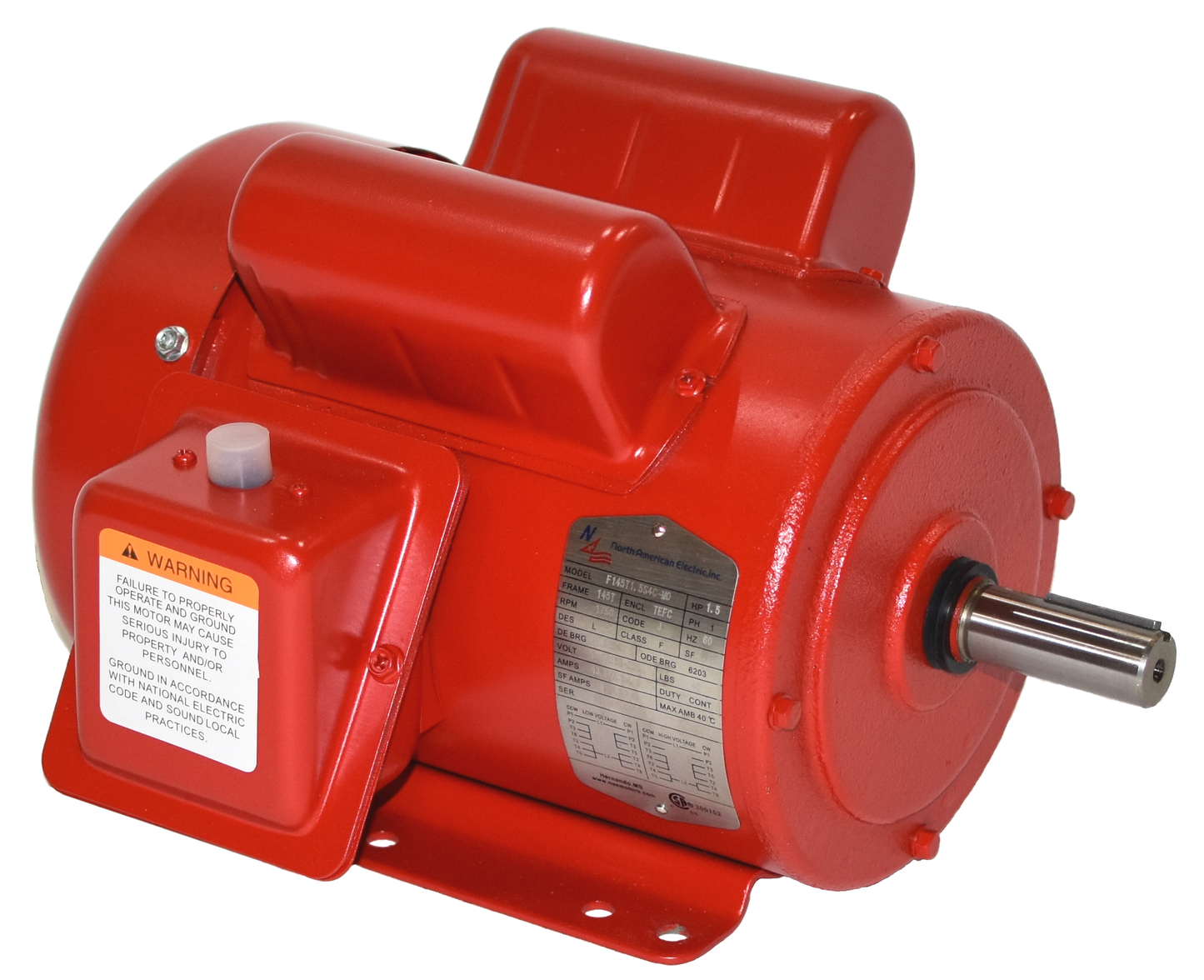

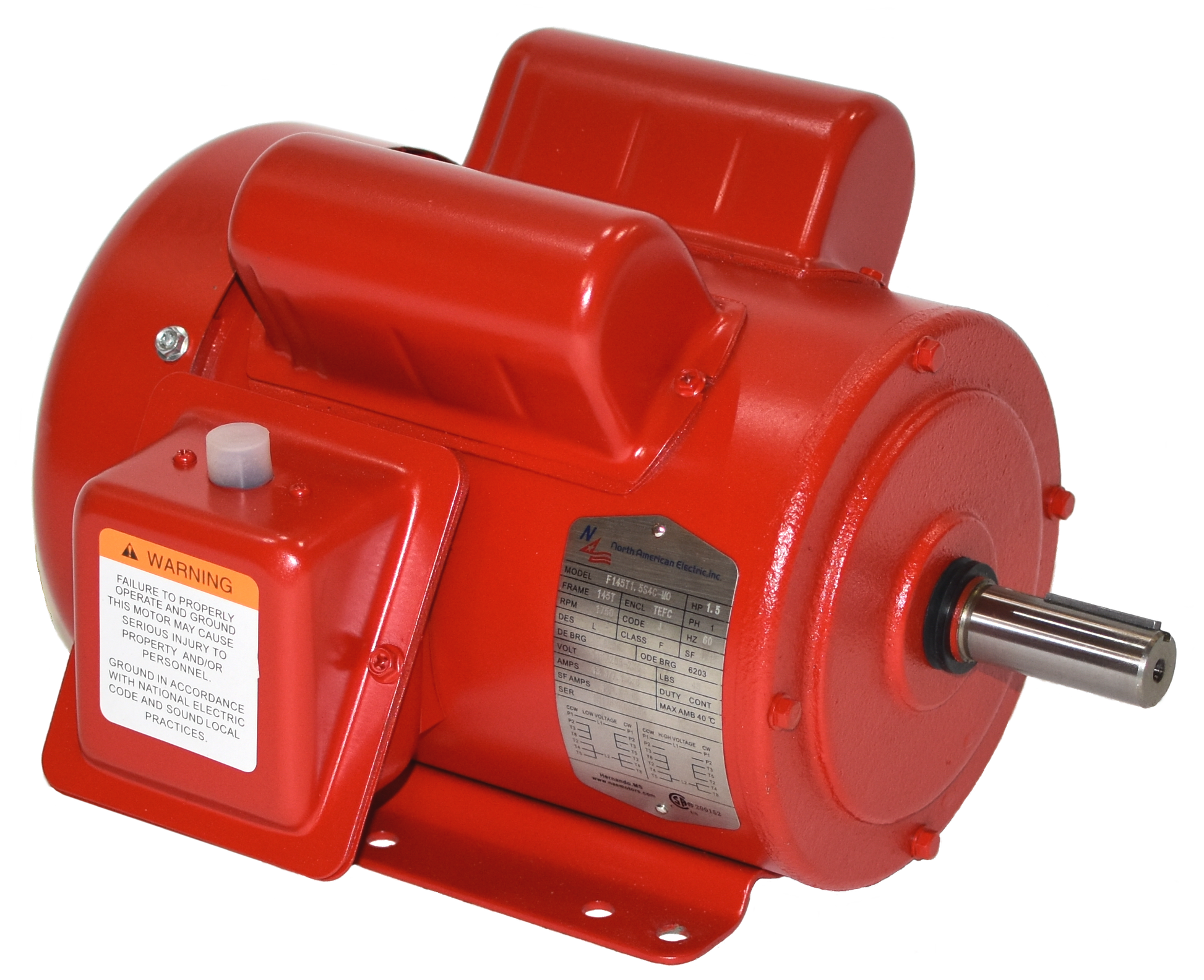

North American Electric F145T1.5S4C-MO, 1.5 HP, 1800 RPM, 145T Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel, Manual Overload

North American Electric F145T1.5S4C-MO, 1.5 HP, 1800 RPM, 145T Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel, Manual Overload

$598.23
$598.23
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$598.23 $568.32
Sale

F145T1.5S4C-MO, 1.5 HP, 1800 RPM, 145T Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel, Manual Overload

Engineering Data

HP 1.5
RPM 1800
Frame 145T
Mult. Sym. M10
Volts 115/208-230
Enclosure TEFC
F.L. Eff. 77
"C" Dim. 13.4
F.L. Amps 6.6

Totally Enclosed Fan Cooled
High Starting Torques
Manual Overload Protection (1/3HP thru 5HP)
Capacitor Start / Capacitor Run Design
Rolled Steel Frames
Double shielded bearings
Class F insulation system, class B rise at full load
Vacuum Pressure Impregnation for windings
Corrosion resistant epoxy paint
Stainless steel nameplate and zinc plated hardware
C-Flange field conversion kits available
Lifting provisions on 182T and above
