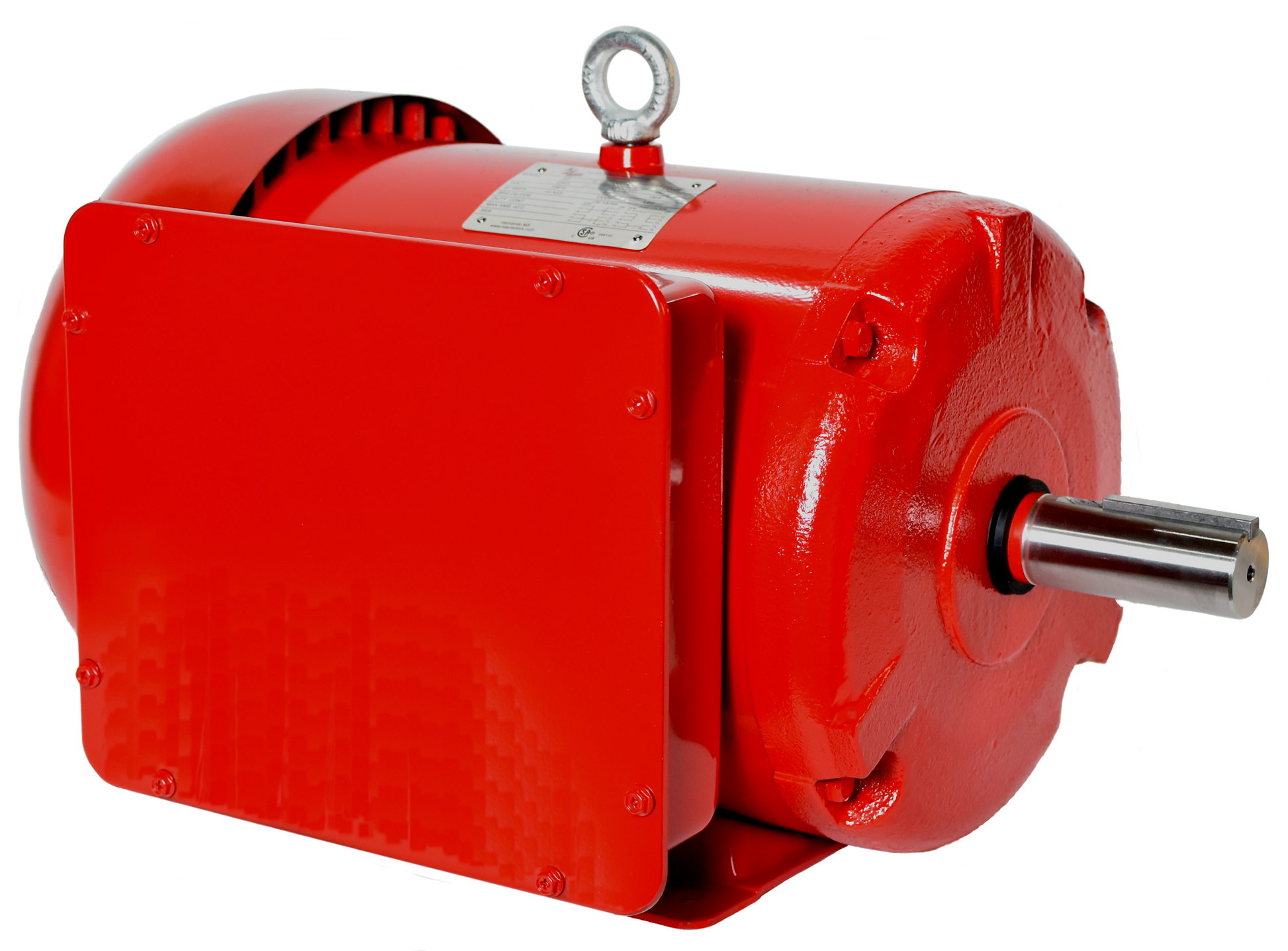

North American Electric F213T7.5S4C, 7.5 HP, 1800 RPM, 213T Frame, 208-230/460V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel

North American Electric F213T7.5S4C, 7.5 HP, 1800 RPM, 213T Frame, 208-230/460V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel

$1,959.27
$1,959.27
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,959.27 $1,861.31
Sale

F213T7.5S4C, 7.5 HP, 1800 RPM, 213T Frame, 208-230/460V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel

Engineering Data

HP 7.5
RPM 1800
Frame 213T
Mult. Sym. M10
Volts 208-230/460
Enclosure TEFC
F.L. Eff. 84.4
Notes 2
"C" Dim. 20.3
F.L. Amps 29.5

Totally Enclosed Fan Cooled
High Starting Torques
Manual Overload Protection (1/3HP thru 5HP)
Capacitor Start / Capacitor Run Design
Rolled Steel Frames
Double shielded bearings
Class F insulation system, class B rise at full load
Vacuum Pressure Impregnation for windings
Corrosion resistant epoxy paint
Stainless steel nameplate and zinc plated hardware
C-Flange field conversion kits available
Lifting provisions on 182T and above
