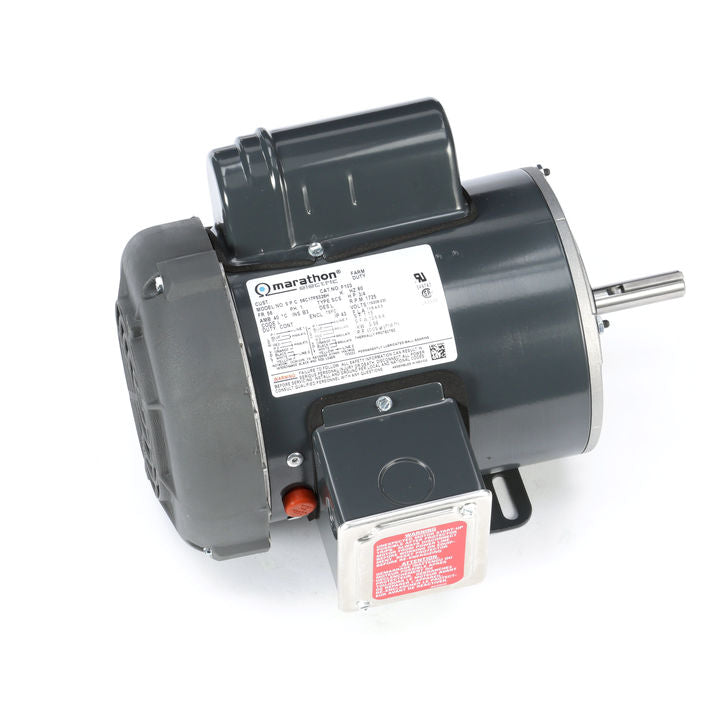

Marathon Electric F34E1, 3/4 Hp, 1800 Rpm, 56 FR, 115/230 Vac, 1 PH, TEFC, Rigid Base, Farm Duty/ High Torque Motor, 5KC46PN0062Y

**This motor has been replaced by Model# F103**
F34E1, 3/4 Hp, 1800 Rpm, 56 FR, 115/230 Vac, 1 PH, TEFC, Rigid Base, Farm Duty/ High Torque Motor, 5KC46PN0062Y.

Engineering Data

60 Hertz
HP 3/4 Voltage 115/230
kW N/A FL Amps 11.0/5.5
RPM 1725
FL Eff 0 % SF 1.0

Phase 1 Insulation Class B
Frame 56 Duty Continuous
Enclosure TEFC Ambient 40
Mounting WB NEMA Design -
Orientation Horizontal or Vertical Starting Type Switch and Mech
Assembly N/A KVA Code L
Drive End Bearing BALL IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 17MM Rotation Select Counter clockwise
Opposite End Bearing Size 17MM Hazardous Location N/R
Weight 31 LB lbs
CE N/A CSA Y
UL Y
Thermal Protection Manual
