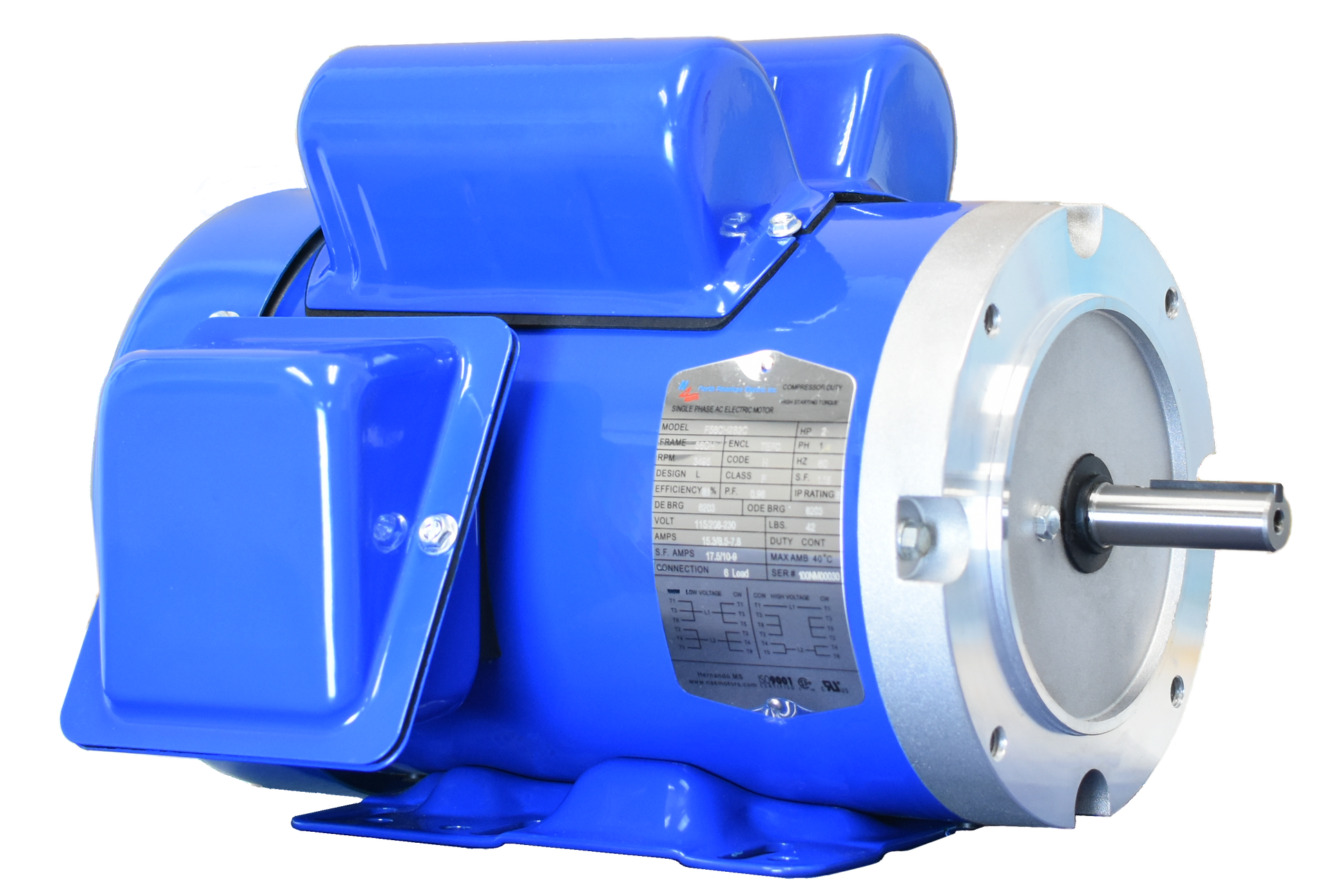

North American Electric F56C1/3S2C General Purpose Electric Motor, 1/3 HP, 3600 RPM, 56C Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel

North American Electric F56C1/3S2C General Purpose Electric Motor, 1/3 HP, 3600 RPM, 56C Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel

$275.63
$275.63
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$275.63 $261.85
Sale

F56C1/3S2C, 1/3 HP, 3600 RPM, 56C Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel

Engineering Data

HP 0.33
RPM 3600
Frame 56C
Mult. Sym. M1
Volts 115/208-230
Enclosure TEFC
F.L. Eff. 50.8
Notes 1
"C" Dim. 11.7
F.L. Amps 2.4

High Efficiency Design
High starting torques
1.15 Service Factor @ 60 hertz
NEMA Design B performance
Vacuum Pressure Impregnation for all windings
Rolled Steel frame construction; Aluminum endbells
Sealed bearings
C-Flange with Removable Feet as standard
Class F insulation system, class B rise at full load
IP55 Protection as standard; Suitable for indoor/outdoor use
40° C ambient continuous duty
CSA + C + US Certification
Stainless steel nameplate and zinc plated hardware
Meets or exceeds NRCan efficiency requirements
56CH Frames: Feet are dual drilled for mounting flexibility
ISO 9001 Certification
