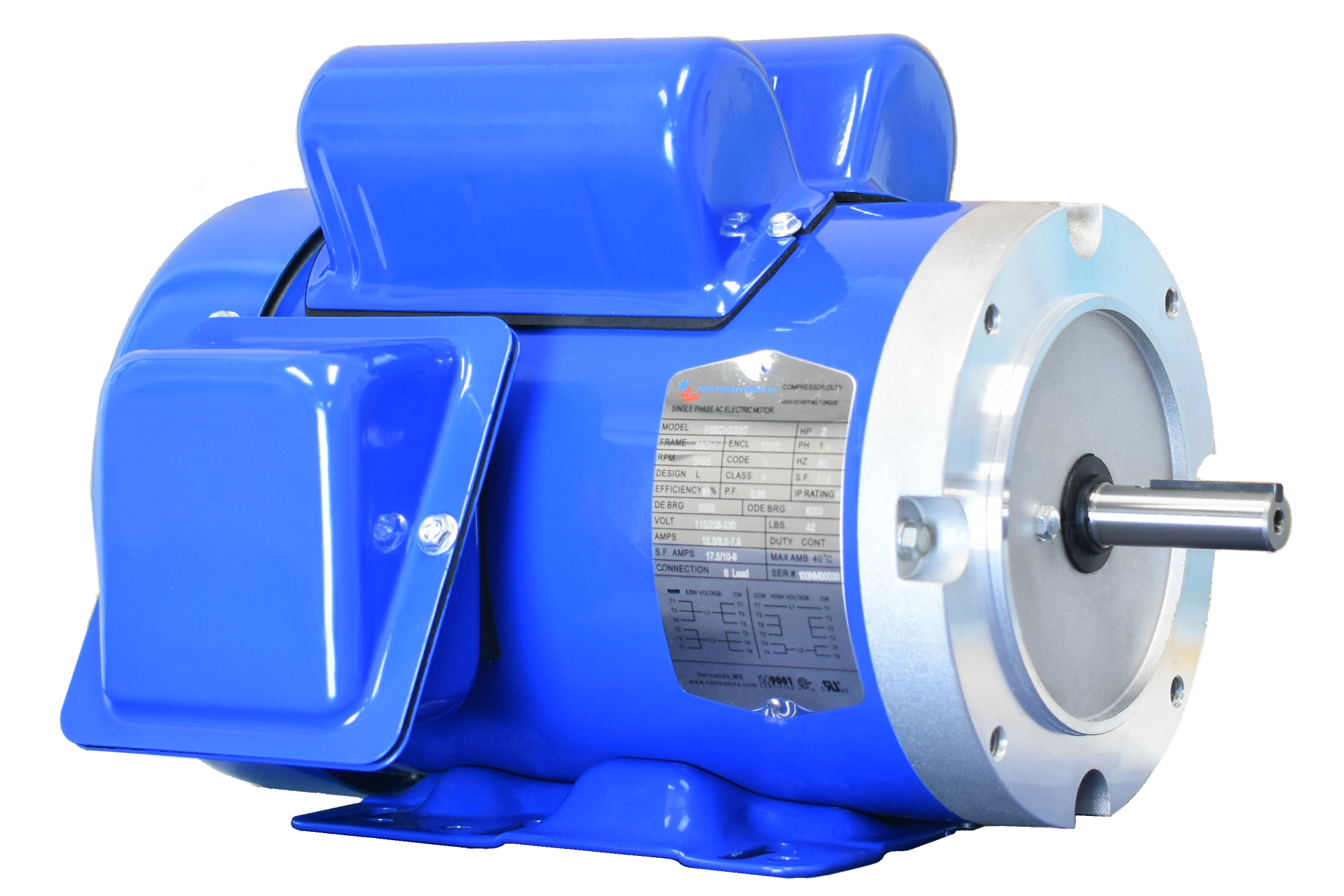

North American Electric F56C3/4S2C 1/2 HP, 3/4 HP, 3600 RPM, 56C Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel

North American Electric F56C3/4S2C 1/2 HP, 3/4 HP, 3600 RPM, 56C Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel

$308.70
$308.70
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$308.70 $293.27
Sale

F56C3/4S2C, 3/4 HP, 3600 RPM, 56C Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel

Engineering Data

HP 0.75
RPM 3600
Frame 56C
Mult. Sym. M1
Volts 115/208-230
Enclosure TEFC
F.L. Eff. 64.5
Notes 1
"C" Dim. 11.7
F.L. Amps 4.3

High Efficiency Design
High starting torques
1.15 Service Factor @ 60 hertz
NEMA Design B performance
Vacuum Pressure Impregnation for all windings
Rolled Steel frame construction; Aluminum endbells
Sealed bearings
C-Flange with Removable Feet as standard
Class F insulation system, class B rise at full load
IP55 Protection as standard; Suitable for indoor/outdoor use
40° C ambient continuous duty
CSA + C + US Certification
Stainless steel nameplate and zinc plated hardware
Meets or exceeds NRCan efficiency requirements
56CH Frames: Feet are dual drilled for mounting flexibility
ISO 9001 Certification
