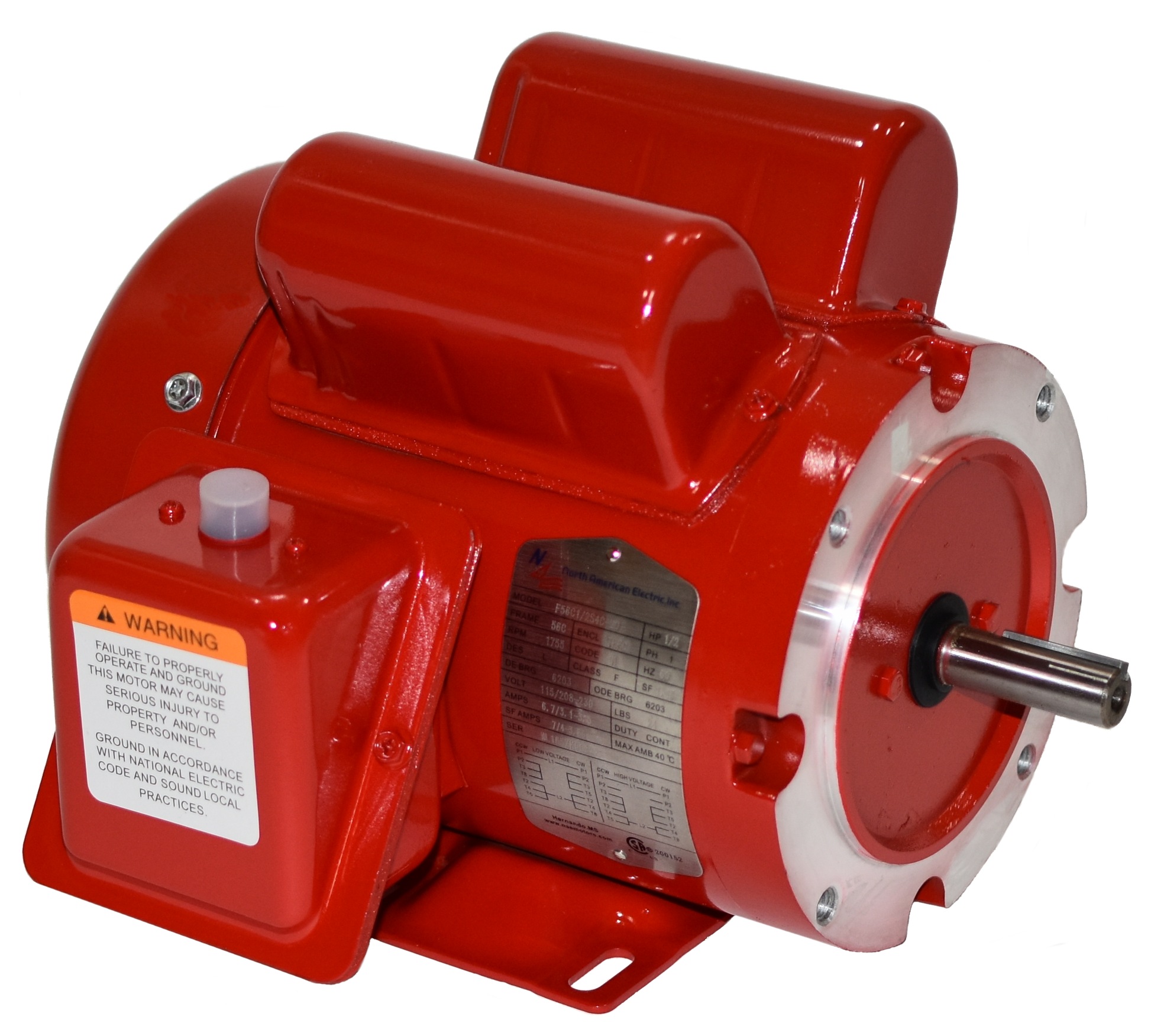

North American Electric F56C3/4S4C-MO, 3/4 HP, 1800 RPM, 56C Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel, Manual Overload

North American Electric F56C3/4S4C-MO, 3/4 HP, 1800 RPM, 56C Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel, Manual Overload

$336.26
$336.26
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$336.26 $319.45
Sale

F56C3/4S4C-MO, 3/4 HP, 1800 RPM, 56C Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel, Manual Overload

Engineering Data

HP 0.75
RPM 1800
Frame 56C
Mult. Sym. M1
Volts 115/208-230
Enclosure TEFC
F.L. Eff. 68.5
Notes 1
"C" Dim. 11.7
F.L. Amps 4.22

Totally Enclosed Fan Cooled
High Starting Torques
Manual Overload Protection (1/3HP thru 5HP)
Capacitor Start / Capacitor Run Design
Rolled Steel Frames
Double shielded bearings
Class F insulation system, class B rise at full load
Vacuum Pressure Impregnation for windings
Corrosion resistant epoxy paint
Stainless steel nameplate and zinc plated hardware
C-Flange field conversion kits available
Lifting provisions on 182T and above
