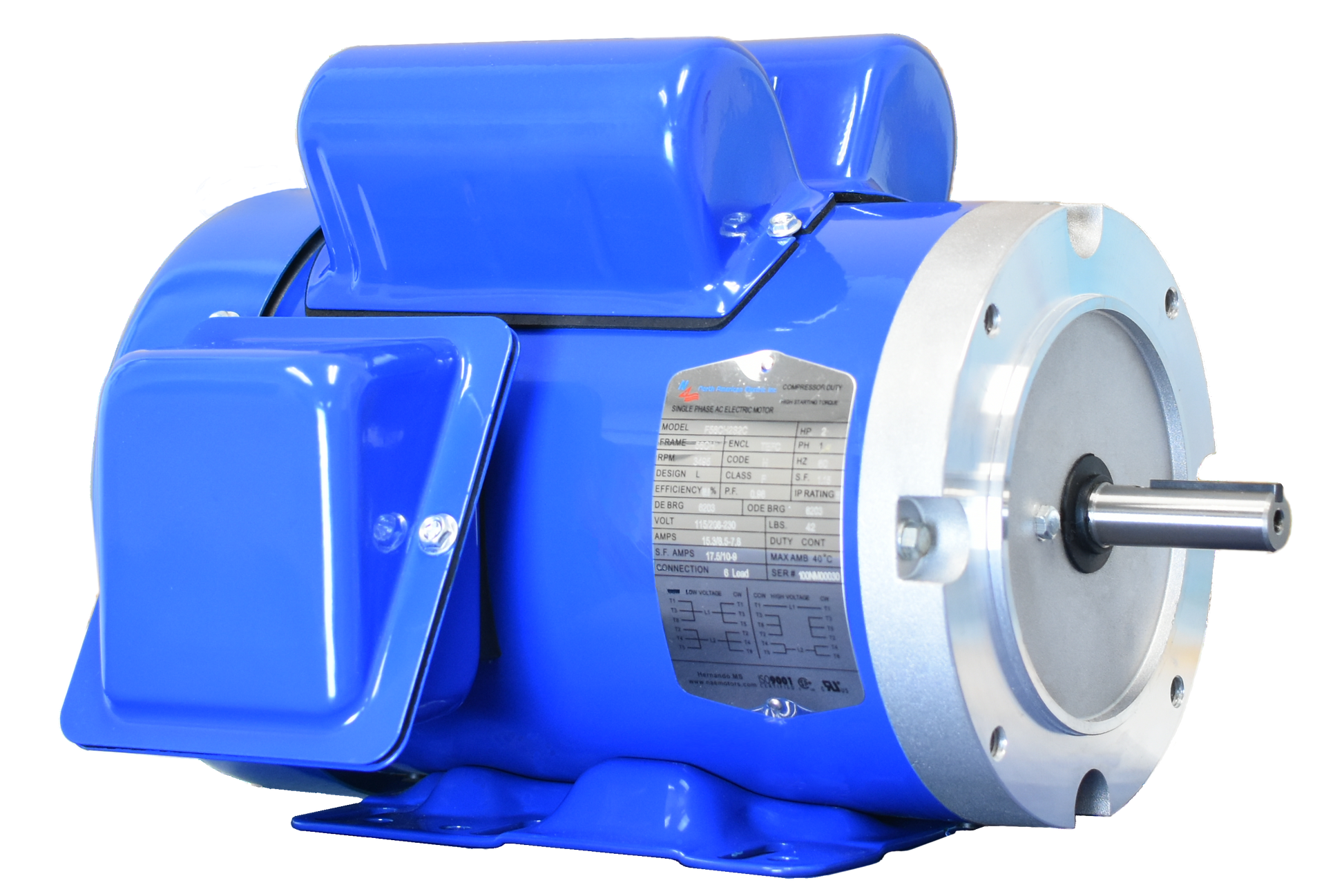

North American Electric F56CH1.5S4C 1.5 HP, 1800 RPM, 56CH Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel

North American Electric F56CH1.5S4C 1.5 HP, 1800 RPM, 56CH Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel

$505.22
$505.22
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$505.22 $479.96
Sale

F56CH1.5S4C, 1.5 HP, 1800 RPM, 56CH Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel

Engineering Data

HP 1.5
RPM 1800
Frame 56CH
Mult. Sym. M1
Volts 115/208-230
Enclosure TEFC
F.L. Eff. 76.8
Notes 1
"C" Dim. 13.1
F.L. Amps 6.7

High Efficiency Design
High starting torques
1.15 Service Factor @ 60 hertz
NEMA Design B performance
Vacuum Pressure Impregnation for all windings
Rolled Steel frame construction; Aluminum endbells
Sealed bearings
C-Flange with Removable Feet as standard
Class F insulation system, class B rise at full load
IP55 Protection as standard; Suitable for indoor/outdoor use
40° C ambient continuous duty
CSA + C + US Certification
Stainless steel nameplate and zinc plated hardware
Meets or exceeds NRCan efficiency requirements
56CH Frames: Feet are dual drilled for mounting flexibility
ISO 9001 Certification.
