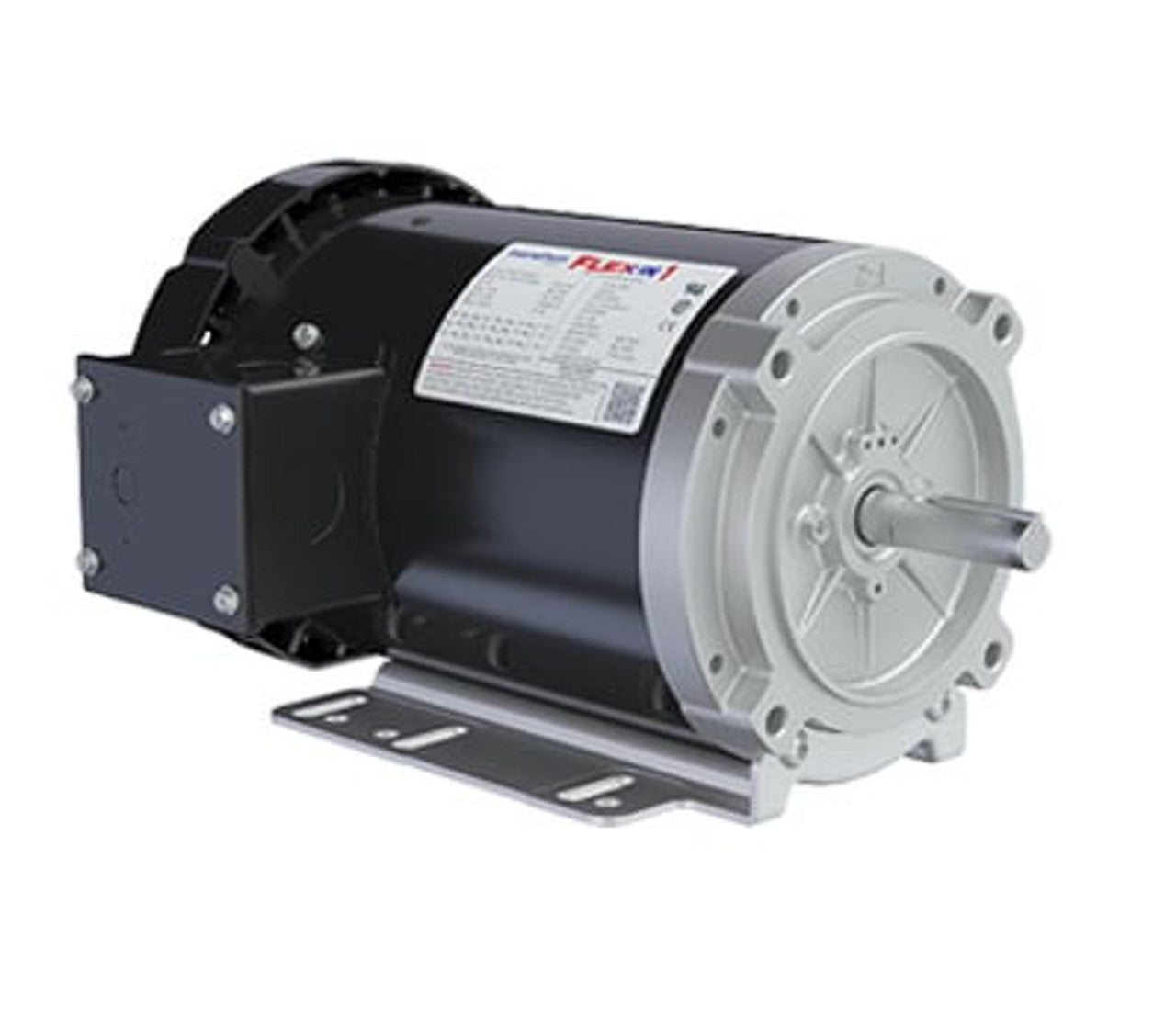

Leeson Electric FX01BK004, 1 HP, 1800 RPM, 56HC FR, 208-230/460 Vac, 3 PH, Rigid Base, TEFC, General Purpose, 056T17F15951

FX01BK004, 1 HP, 1800 RPM, 56HC FR, 208-230/460 Vac, 3 PH, Rigid Base, TEFC, General Purpose, 056T17F15951 Engineering Data Volts 208-230 Volts 460 Volts 190/380 F.L. Amps 3.2-3.2 F.L. Amps 1.6 F.L. Amps 3.4/1.7 S. F Amps 3.8-3.8 S. F Amps 1.9 S. F Amps 4/2 -------------------------------------------------------------------------------- RPM 1800 Hertz 60/50 HP 1 Duty CONTINUOUS TYPE TF KW 0.75 Frame 56 Serv. Factor 1.25 Phase 3 Max Amb 40 Design B Code N Insul Class F Protection AUTOMATIC Therm.Prot. 9700K46 Eff 100% 85.5 Eff 75% PF 68.5 UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203 CC Number EXEMPT CE Yes Bearing PE 6203 Load Type Inverter Type Speed Range NONE -------------------------------------------------------------------------------- Motor Wt. 42 LB Enclosure TEFC Lubrication POLYREX EM Nameplate 993500 Mounting RIGID Rotation REV Assembly Shaft Dia. 5/8 IN Ext.

116757.00, 1 HP, 1800 RPM, 56 FR, 208-230/460 Vac, 3 PH, Rigid Base, TEFC, General Purpose. Engineering Data Volts 208-230 Volts 460 Volts 190/380 F.L. Amps 3.2-3.2 F.L. Amps 1.6 F.L. Amps 3.4/1.7 S. F Amps 3.8-3.8 S. F Amps 1.9 S. F Amps 4/2 -------------------------------------------------------------------------------- RPM 1800 Hertz 60/50 HP 1 Duty CONTINUOUS TYPE TF KW 0.75 Frame 56 Serv. Factor 1.25 Phase 3 Max Amb 40 Design B Code N Insul Class F Protection AUTOMATIC Therm.Prot. 9700K46 Eff 100% 85.5 Eff 75% PF 68.5 UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203 CC Number EXEMPT CE Yes Bearing PE 6203 Load Type Inverter Type Speed Range NONE -------------------------------------------------------------------------------- Motor Wt. 32 LB Enclosure TEFC Lubrication POLYREX EM Nameplate 993500 Mounting RIGID Rotation REV Assembly Shaft Dia. 5/8 IN Ext. Diag. 005010.20 Cust Part No Outline 028781-700 Ext. Diag2 Packaging B Outline Dash No Winding T634342 Carton Label Leeson Wattsaver GROUP: 3 Iris Paint 305056.01 Test Card 01 -------------------------------------------------------------------------------- Form Factor RMS Amps Const Torque Speed Range Torque Peak AB Code Peak@DegC Resistance Connection -------------------------------------------------------------------------------- Rework Status Rework TYPE -------------------------------------------------------------------------------- Hazardous Loc NONE Brake Motors Explosion Proof Temp Op Code FORCE Class GROUP: VDC Class GROUP: ADC Brake Coil OHMs @25 C Performance Torque UOM LB-FT Inertia (WK²) .12 LB-FT^2 Torque 3(Full Load) 15.8(Break Down) 11.9(Pull Up) 12(Locked Rotor) CURRENT (amps) 1.7(Full Load) 9.86(Break Down) 13.02(Pull Up) 14(Locked Rotor) Efficiency (%) 0(Full Load) 85.4(75% Load) 79.6(50% Load) 72.5(25% Load) PowerFactor 69.9(Full Load) 61.5(75% Load) 51.5(50% Load) 32.4(25% Load) Load Curve Data @60/50 Hz, 460 Volts, 1 Horsepower Load Amps KW RPM Torque Eff PF Rise By Resis Frame Rise 0.0 1.0 0.064 1798 0.0 0.0 8.0 0.0 - 0.25 1.02 0.263 1789 0.75 72.5 32.4 0.0 - 0.5 1.16 0.476 1779 1.5 79.6 51.5 0.0 - 0.75 1.35 0.662 1769 2.25 85.4 61.5 0.0 - 1.0 1.55 0.876 1757 3.0 85.5 70.9 38.0 22.0 1.25 1.77 1.098 1745 3.75 84.7 77.9 60.0 - 1.5 2.03 1.316 1733 4.5 84.2 81.4 0.0 - SOURCE CALCULATED GROUP 3 1051 Cheyenne Ave, Grafton, WI 53024 Email: leebizsupport@leeson.com Terms and Conditions Copyright © Regal-Beloit Corporation 2014
