Industrial Motors

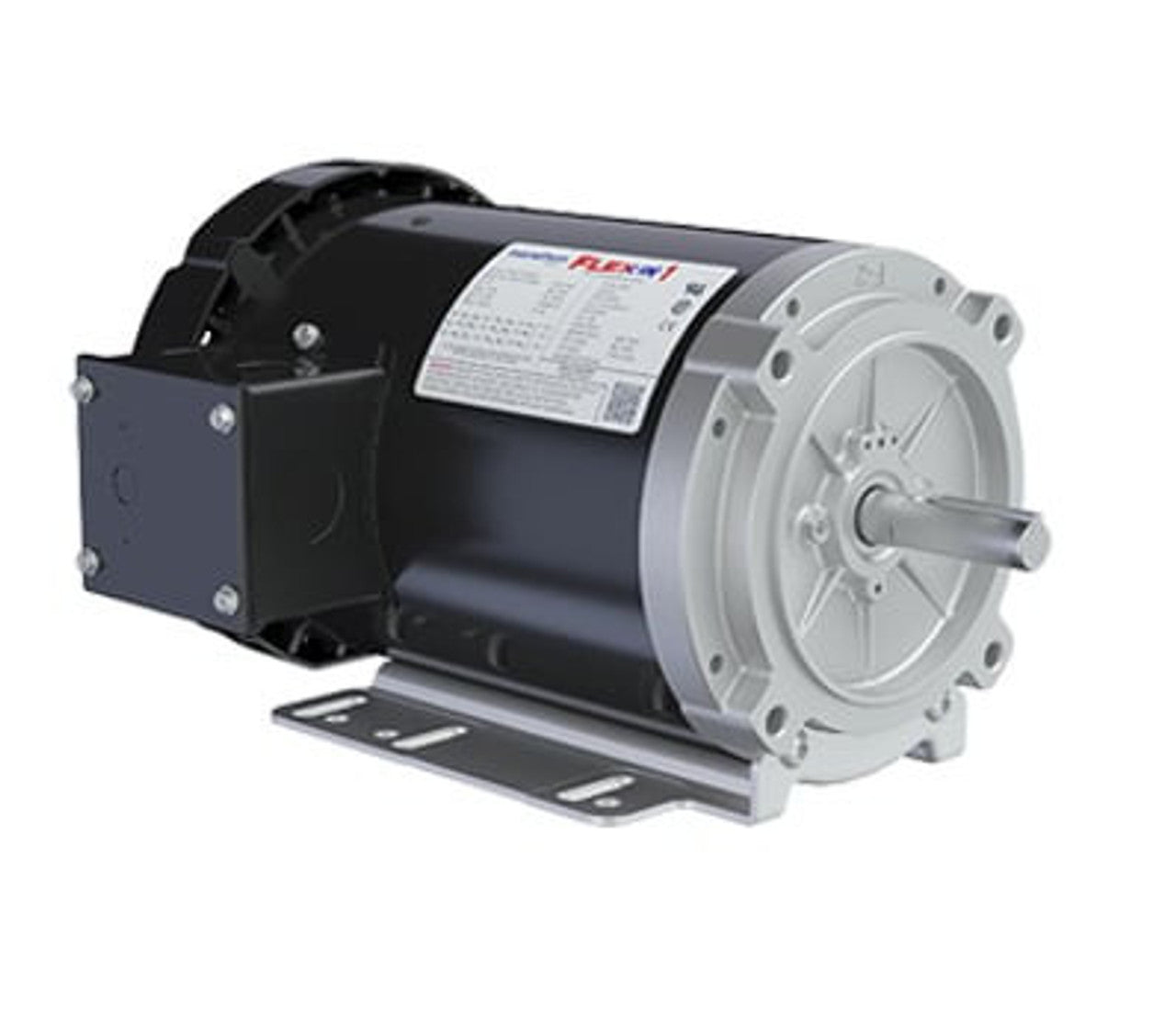

FX02BK003, 2 HP, 1800 RPM, 56H FR, DP, 208-230/460 Vac, 3 PH, Rigid Base, General Purpose

FX02BK003, 2 HP, 1800 RPM, 56H FR, DP, 208-230/460 Vac, 3 PH, Rigid Base, General Purpose

$530.00
$530.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$530.00 $286.20
Sale
FX02BK003, 2 HP, 1800 RPM, 56H FR, DP, 208-230/460 Vac, 3 PH, C-Face With Base, General Purpose Engineering Data Volts 208-230 Volts 460 Volts F.L. Amps 6.3 F.L. Amps 3.3 F.L. Amps RPM 1800 Hertz 60 HP 2 Duty CONTINUOUS TYPE TD KW 1.50 Frame F56H Serv. Factor 1.15 Phase 3 Max Amb 40 Design C Code J Insul Class B Protection AUTOMATIC Therm.Prot. CWJ54KX Eff 100% 78.5 Eff 75% PF 77 UL Yes CSA Yes Bearing OPE 6203 CC Number CE No Bearing PE 6203 Load Type Inverter Type Speed Range NONE Motor Wt. 46 LB Enclosure DP Lubrication POLYREX EM Nameplate 004001 Mounting RIGID Rotation REV Assembly Shaft Dia. 5/8 IN Ext. Diag. 005020.02 Cust Part No Outline 034978-650 Ext. Diag2 Packaging B Winding T634190 Carton Label Leeson Gen Purpose GROUP: 5 Iris Paint STANDARD Test Card 02
