Industrial Motors

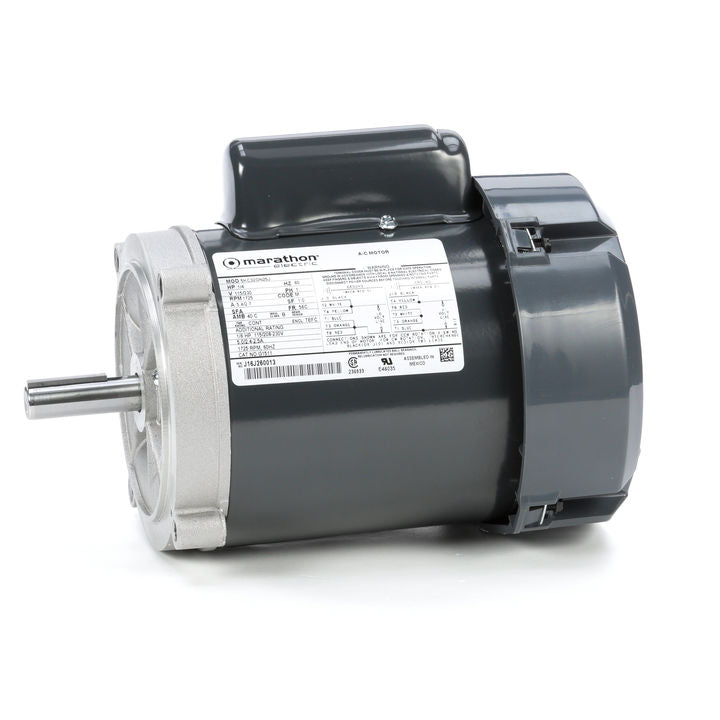

Marathon Electric G1511, 1/4 Hp, 1800 Rpm, 56C FR, 115/230 Vac, 1 PH, TEFC, C-Face, Footless, General Purpose, No Overload, 5KC32GN25.

Marathon Electric G1511, 1/4 Hp, 1800 Rpm, 56C FR, 115/230 Vac, 1 PH, TEFC, C-Face, Footless, General Purpose, No Overload, 5KC32GN25.

$593.00
$593.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$593.00 $563.35
Sale

G1511, 1/4 Hp, 1800 Rpm, 56C FR, 115/230 Vac, 1 PH, TEFC, C-Face, Footless, General Purpose, No Overload, 5KC32GN25.

Engineering Data

Nameplate Specifications

Output HP  0.25 Hp
Output KW  0.19 kW
Frequency  60 Hz
Voltage  115/230 V
Current  5.4,2.7 A
Speed  1725 rpm
Service Factor  1
Phases  1
Efficiency  55 %
Duty  CONT
Insulation Class  B
KVA Code  M
Frame  56C
Enclosure  TEFC
Overload Protector  N/R
Ambient Temperature  40 °C
Drive End Bearing Size  6203
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Yes
CE  N

Technical Specifications

Electrical Type  Capacitor start(CSIR)
Starting Method  SM
Poles  4
Rotation  CCW/CW
Mounting  RD
Motor Orientation  ANY
Drive End Bearing  LOCKED
Opp Drive End Bearing  BALL
Frame Material  Rolled Steel
Overall Length  10.3 in
Frame Length  5.16 in
Shaft Diameter  0.63 in
Shaft Extension  1.88 in
