Baldor Electric GM3347, 1/4 Hp, 230/460 Vac, 170 Rpm, 10:1, 72 Lb-in., 2524M-K Frame, 3 Phase Input, Right Angle AC Gearmotor

Baldor Electric GM3347, 1/4 Hp, 230/460 Vac, 170 Rpm, 10:1, 72 Lb-in., 2524M-K Frame, 3 Phase Input, Right Angle AC Gearmotor

$848.00
$848.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
Baldor Electric Motors is no longer manufacturing this motor, possible replacement is the following Baldor Electric Motors part# 2873

**This motor has been replaced by Bodine Model# 2873**

GM3347, 1/4 Hp, 230/460 Vac, 170 Rpm, 10:1, 72 Lb-in., 2524M-K Frame, 3 Phase Input, Right Angle AC Gearmotor

Engineering Data

Frequency 50.00 Hz
60.00 Hz
Gear Ratio10:1
Gear StyleK
Gearhead TypeRIGHT ANGLE
Number of Poles4
Output Speed140 rpm
170 rpm
Output Torque72.00 in lb
Phase3
Speed1,675 rpm
1,400 rpm
Voltage460 V
380 V
230 V
208 V
190 V
BrandBaldor-Reliance
Connection DiagramCD0005A05

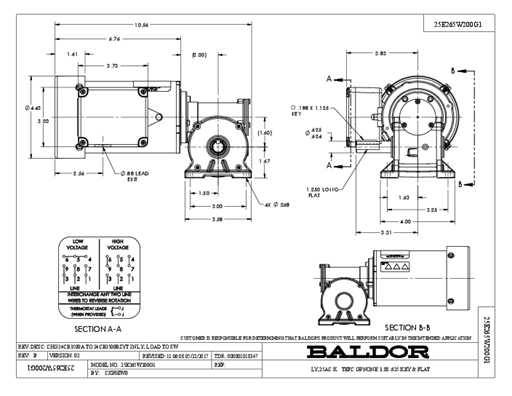

Dimensional Drawing Numbers25E265W200G1
Duty RatingCONT
Frame MaterialSteel
Insulation ClassF
KVA Code-
