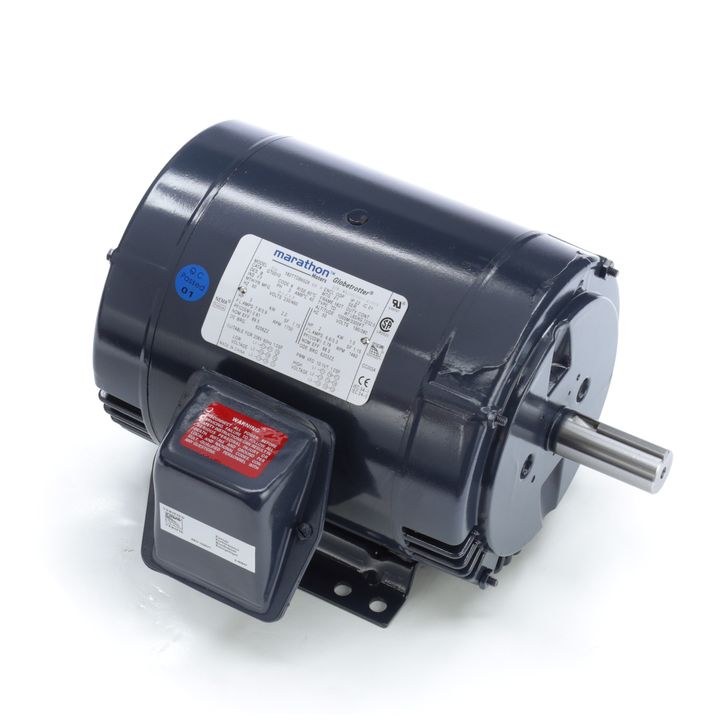

Marathon Electric GT0005A, 1/2 Hp, 1200 Rpm, 182T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 182TTDBD6076.

GT0005A, 1/2 Hp, 1200 Rpm, 182T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 182TTDBD6076.

Engineering Data

Nameplate Specifications

Output HP : 1.50 HP
Output KW : 1.1 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 4.6/2.3 A
Speed : 1180 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 86.5 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : M
Frame : 182T
Enclosure : Drip Proof
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6206
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y CE : Y IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 6 Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Shaft Diameter : 1.125 in
Assembly/Box Mounting : F1/F2 CAPABLE
