Industrial Motors

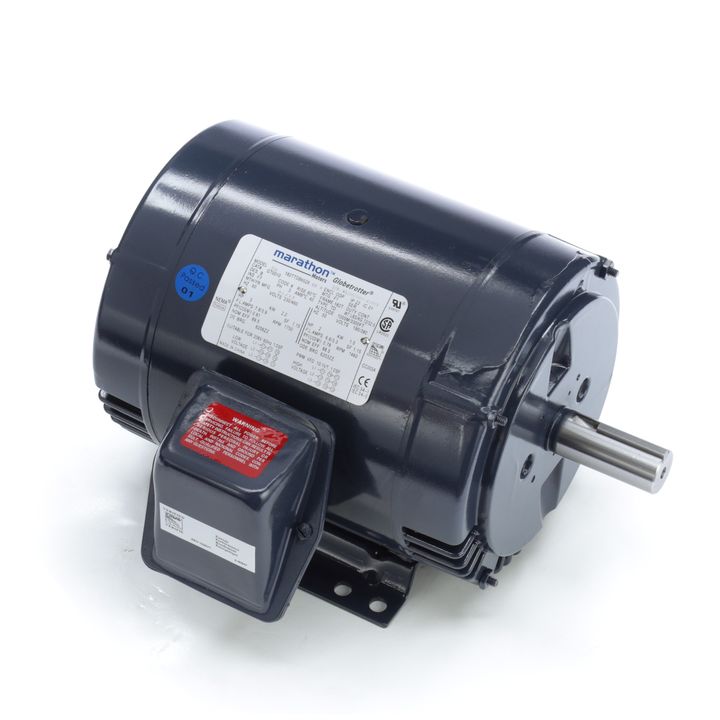

GT0010A, 182TTDBD6026, 3 Hp, 1800 Rpm, 182T FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor

GT0010A, 182TTDBD6026, 3 Hp, 1800 Rpm, 182T FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor

$457.47
$457.47
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$457.47 $434.60
Sale
GT0010A, 182TTDBD6026, 3 Hp, 1800 Rpm, 182T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, Engineering Data Output HP 3 Hp Output KW 2.24 kW Frequency 60 Hz Voltage 230/460 V Current 7.8/3.9 A Speed 1750 rpm Service Factor 1.15 Phases 3 Efficiency 89.5 % Duty CONTINUOUS Insulation Class F Design Code B KVA Code K Frame 182T Enclosure DP Overload Protector NOT Ambient Temperature 40 °C Drive End Bearing Size 6206 Opp Drive End Bearing Size 6203 UL Recognized CSA Y CE Y IP Code 22 Technical Specifications Electrical Type SQ CAGE INV RATED Starting Method LINE OR INVERTER Poles 4 Rotation REV Mounting RIGID Motor Orientation HORIZONTAL Drive End Bearing BALL Opp Drive End Bearing BALL Frame Material ROLLED STEEL Shaft Type T Overall Length 13.72 in Shaft Diameter 1.13 in Shaft Extension 2.75 in Assembly/Box Mounting F1 ONLY
View full details
