Industrial Motors

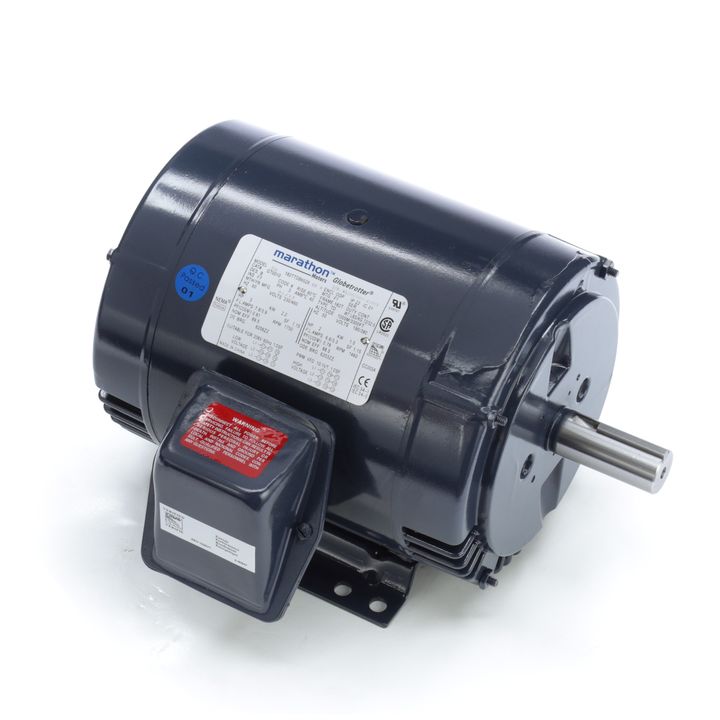

Marathon Electric GT0021A, 15 Hp, 3600 Rpm, 215T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 215TTDBD6001

Marathon Electric GT0021A, 15 Hp, 3600 Rpm, 215T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 215TTDBD6001

$1,213.02
$1,213.02
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,213.02 $1,152.37
Sale

GT0021A, 15 Hp, 3600 Rpm, 215T FR, 230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof, 215TTDBD6001

Engineering Data

Output HP:15 Hp
Output KW:11.2 kW
Frequency:60 Hz
Voltage:230/460 V
Current:36.0/18.0 A
Speed:3515 rpm
Service Factor:1.15
Phase:3
Efficiency:90.9 %
Power Factor:85.8
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:215T
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:2
Rotation:Reversible
Resistance Main:.97 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:17.52 in
Shaft Diameter:1.375 in
Shaft Extension:3.38 in
