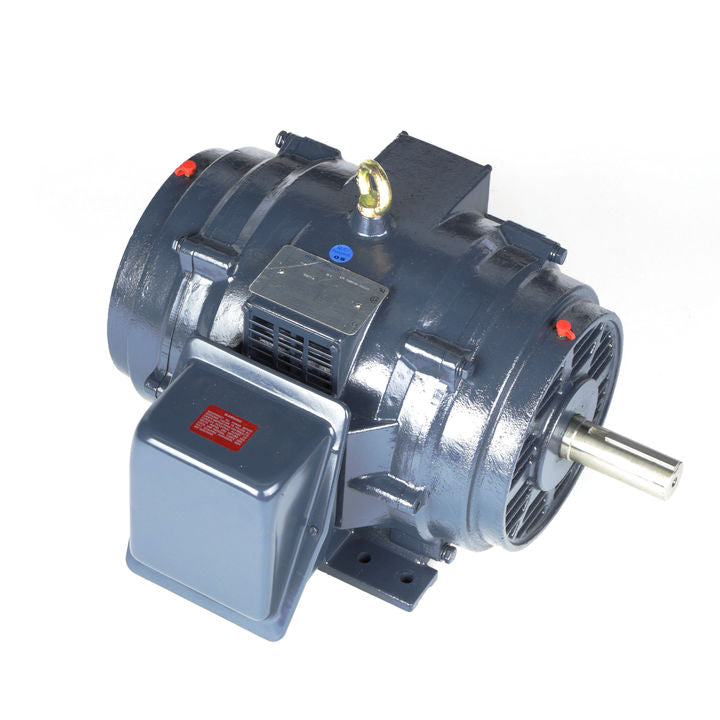

GT0030, 284TSTDCA6001, 30 Hp, 3600 Rpm, 284TS FR, 208-230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof,

GT0030, 284TSTDCA6001, 30 Hp, 3600 Rpm, 284TS FR, 208-230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof,

Engineering Data

Nameplate Specifications

Output HP 30 Hp
Output KW  22.4 kW
Frequency  60 Hz
Voltage  230/460 V
Current  66.5/33.5 A
Speed  3553 rpm
Service Factor  1.15
Phases  3
Efficiency  91.7 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  284TS
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6211
Opp Drive End Bearing Size  6211
UL  Recognized
CSA  Y
CE  Y
IP Code  23

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method Y START D RUN OR INV
Poles  2
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  TS
Overall Length  24.41 in
Shaft Diameter  1.63 in
Shaft Extension  3.25 in
Assembly/Box Mounting  F1/F2 CAPABALE
