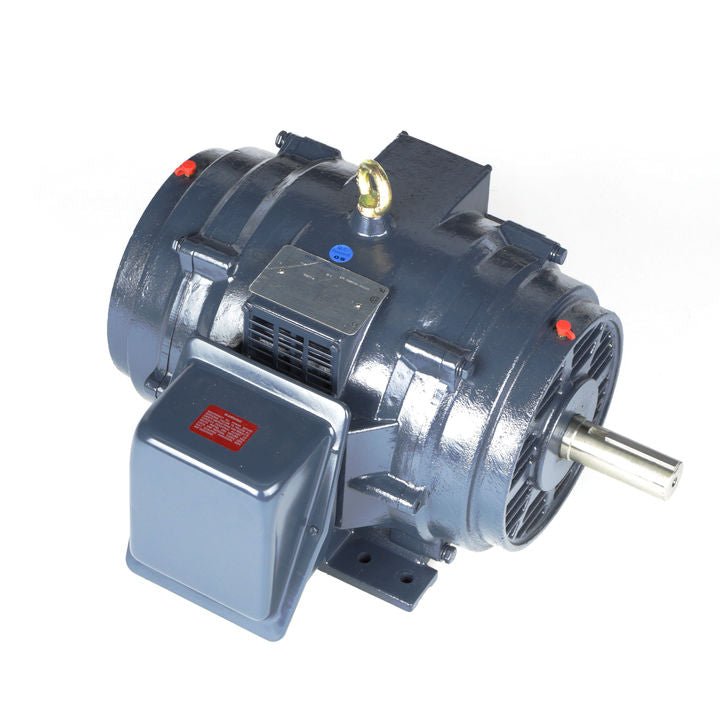

GT0031, 286TTDCA6026, 30 Hp, 1800 Rpm, 286T FR, 208-230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof,

GT0031, 286TTDCA6026, 30 Hp, 1800 Rpm, 286T FR, 208-230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof,

Engineering Data

Nameplate Specifications

Output HP 30 Hp
Output KW  22.4 kW
Frequency  60 Hz
Voltage  230/460 V
Current  74/37 A
Speed  1775 rpm
Service Factor  1.15
Phases  3
Efficiency  94.1 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  F
Frame  286T
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6311
Opp Drive End Bearing Size  6210
UL  Recognized
CSA  Y
CE  Y
IP Code  12

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method Y START D RUN OR INV
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  T
Overall Length  27.09 in
Shaft Diameter  1.88 in
Shaft Extension  4.62 in
Assembly/Box Mounting  F1/F2 CAPABALE
