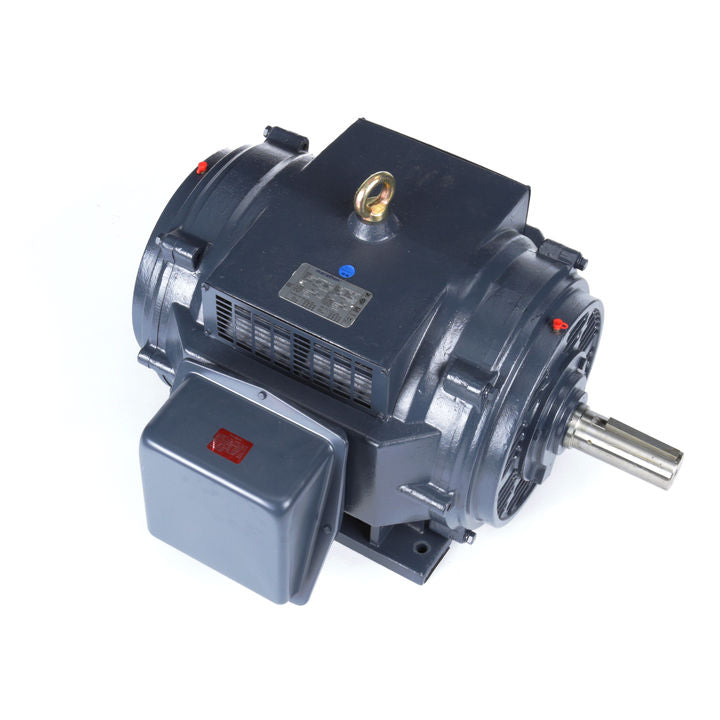

GT0038, 365TTDCB6086, 50 Hp, 1200 Rpm, 365T FR, 208-230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof,

GT0038, 365TTDCB6086, 50 Hp, 1200 Rpm, 365T FR, 208-230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof,

Engineering Data

Nameplate Specifications

Output HP 50 Hp
Output KW  37 kW
Frequency  60 Hz
Voltage  230/460 V
Current  122/61 A
Speed  1186 rpm
Service Factor  1.15
Phases  3
Efficiency  94.1 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  F
Frame  365T
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6314
Opp Drive End Bearing Size  6313
UL  Recognized
CSA  Y
CE  Y
IP Code  12

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method PWS & Y D RUN OR INV
Poles 6
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  TS
Overall Length  33.27 in
Shaft Diameter  2.38 in
Shaft Extension  5.75 in
Assembly/Box Mounting  F1/F2 CAPABALE
