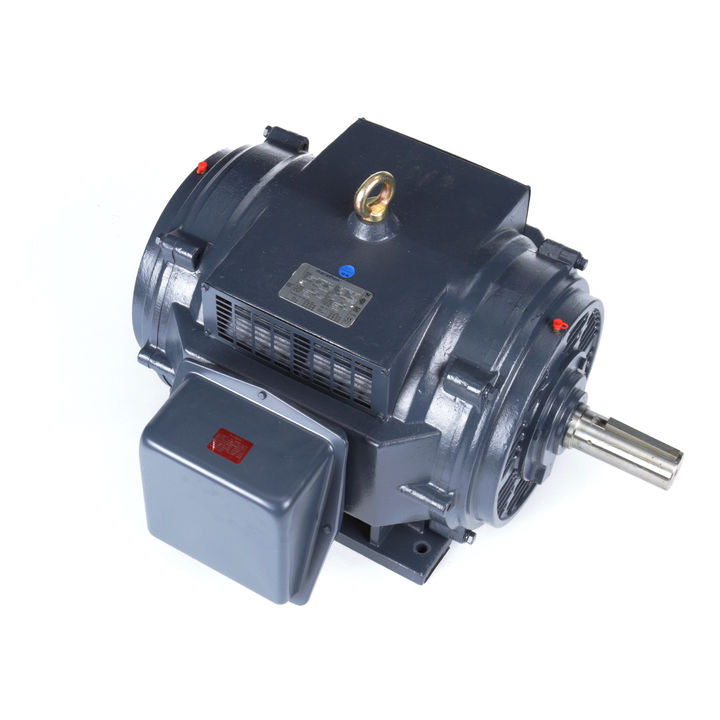

GT0040, 364TTDCB6060, 60 Hp,1800 Rpm, 364T FR, 208-230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof,

GT0040, 364TTDCB6060, 60 Hp,1800 Rpm, 364T FR, 208-230/460 Vac, 3 PH, General Purpose, Globetrotter, Dripproof,

Engineering Data

Nameplate Specifications

Output HP 60 Hp
Output KW  45 kW
Frequency  60 Hz
Voltage  230/460 V
Current  139/69.5 A
Speed  1785 rpm
Service Factor  1.15
Phases  3
Efficiency  95%
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  364T
Enclosure  DP
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6314
Opp Drive End Bearing Size  6313
UL  Recognized
CSA  Y
CE  Y
IP Code  22

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method PWS & Y D RUN OR INV
Poles 4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  T
Overall Length  31.69 in
Shaft Diameter  2.38 in
Shaft Extension  5.88 in
Assembly/Box Mounting  F1/F2 CAPABALE
